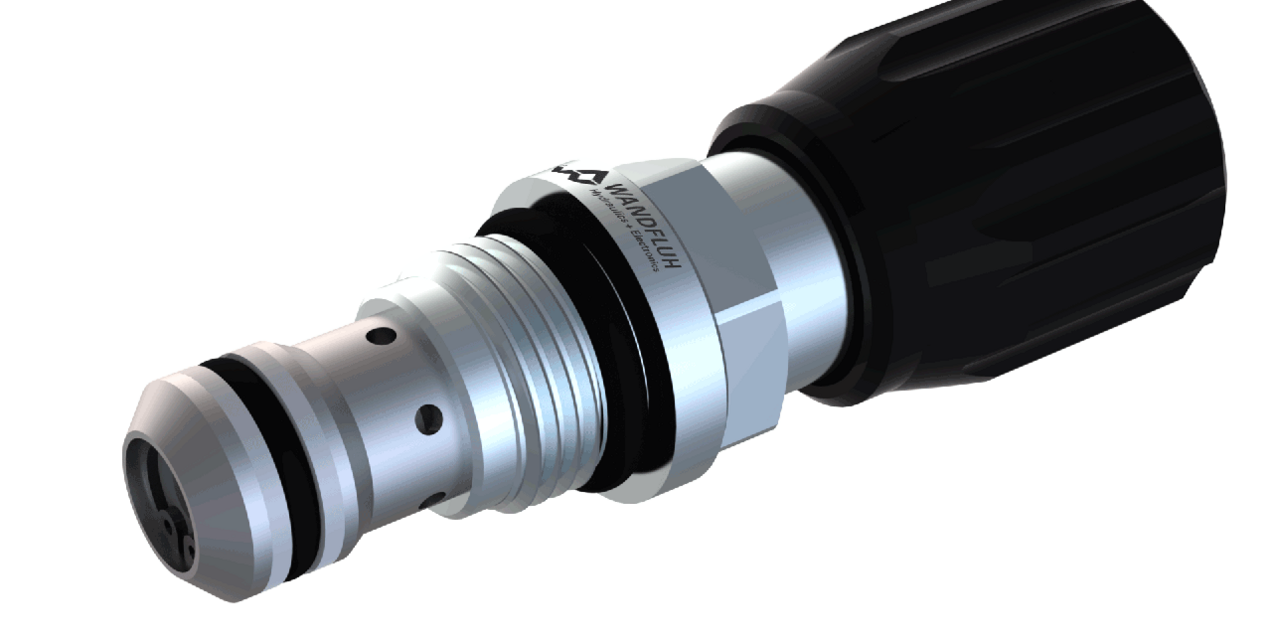

2-way flow control cartridge
Description
2-way screw-in cartridge-type flow control valve with M18x1,5 thread, for pressure cavity acc. to ISO 7789. The valve is available in two different setting versions: Spanner setting „S“ and turning knob „D“. In its standard form, this control valve can be supplied with five nominal volume flow ranges. The two part cartridge body is made of steel. The surface of the valve is zinc-coated plated for rust protection.
Application
For use in all hydraulic systems where the supply volume flow needs to be kept constant even when the load fluctuates. Installation of the screw-in cartridge in control blocks as well as in the Wandfluh sandwich plates (vertical stacked systems) and flange valves of the NG3-Mini size. (Please note the separate data sheets in register 2.5). Cavity tools are available for machining the cavities in steel and aluminium (hire or purchase). Please refer to the data sheets in register 2.13.
Key facts
2-way flow control valve
Screw-in cartridge
Fixed orifice, adjustable pressure compensator
- Qmax = 17 l/min
- QN max = 12,5 l/min
- pmax = 315 bar
