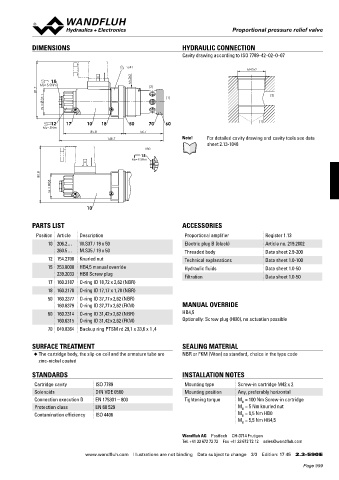

P. 999

Proportional pressure relief valve
                                                                                   Proportional pressure relief valve


            DIMENSIONS                                           HYDRAULIC CONNECTION
                                                                 Cavity drawing according to ISO 7789–42–02–0–07

                                              s41
                                                                                        M42x2
                   15                          M42x2
               MD=5.5Nm                              (2)
               81.7
                37.1                                       (1)                                  (2)

                 W =

                   12   17      10   18       50     70    60                               (1)
                MD=5Nm
                                 85.8              56.7
                                       148.7                     Note!    For detailed cavity drawing and cavity tools see data
                                                                          sheet 2.13-1048
                                                    HB0
                                                   15
                                               MD= 9.5Nm

                80.8
                   35
                    M =


                                10

            PARTS LIST                                           ACCESSORIES

              Position Article  Description                       Proportional amplifier      Register 1.13
                  10 206.2…  W.S37 / 19 x 50                      Electric plug B (black)     Article no. 219.2002
                     260.5…  M.S35 / 19 x 50                      Threaded body               Data sheet 2.9-200
                  12 154.2700  Knurled nut                        Technical explanations      Data sheet 1.0-100
                  15 253.8000  HB4,5 manual override              Hydraulic fluids            Data sheet 1.0-50
                     239.2033  HB0 Screw plug
                                                                  Filtration                  Data sheet 1.0-50
                  17 160.2187  O-ring ID 18,72 x 2,62 (NBR)
                  18 160.2170  O-ring ID 17,17 x 1,78 (NBR)
                  50 160.2377  O-ring ID 37,77 x 2,62 (NBR)
                     160.6379  O-ring ID 37,77 x 2,62 (FKM)      MANUAL OVERRIDE
                  60 160.2314  O-ring ID 31,42 x 2,62 (NBR)      HB4,5
                     160.6315  O-ring ID 31,42 x 2,62 (FKM)      Optionally: Screw plug (HB0), no actuation possible
                  70 049.8364  Backup ring PTSM rd 29,1 x 33,6 x 1 ,4


            SURFACE TREATMENT                                    SEALING MATERIAL
             ◆  The cartridge body, the slip-on coil and the armature tube are   NBR or FKM (Viton) as standard, choice in the type code
               zinc-nickel coated

            STANDARDS                                            INSTALLATION NOTES

             Cartridge cavity      ISO 7789                       Mounting type      Screw-in cartridge M42 x 2
             Solenoids             DIN VDE 0580                   Mounting position  Any, preferably horizontal
             Connection execution D  EN 175301 – 803              Tightening torque  M  = 100 Nm Screw-in cartridge
                                                                                      D
             Protection class      EN 60 529                                         M  = 5 Nm knurled nut
                                                                                      D
             Contamination efficiency  ISO 4406                                      M  = 9,5 Nm HB0
                                                                                      D
                                                                                     M  = 5,5 Nm HB4,5
                                                                                      D
                                                                 Wandfluh AG  Postfach  CH-3714 Frutigen
                                                                 Tel. +41 33 672 72 72  Fax +41 33 672 72 12  sales@wandfluh.com

                               www.wandfluh.com  Illustrations are not binding  Data subject to change  3/3  Edition: 17 45  2.3-590 E
