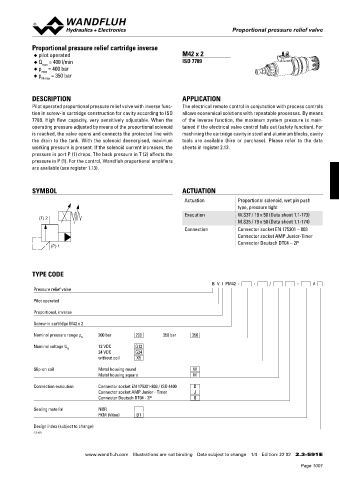

Proportional pressure relief valve
                                                                                   Proportional pressure relief valve


            Proportional pressure relief cartridge inverse
             ◆  pilot operated                                   M42 x 2
             ◆  Q  = 400 l/min                                   ISO 7789
                max
             ◆  p  = 400 bar
                max
             ◆  p   = 350 bar
                N max

            DESCRIPTION                                          APPLICATION
            Pilot operated proportional pressure relief valve with inverse func-  The electrical remote control in conjunction with process controls
            tion in screw-in cartridge construction for cavity according to ISO   allows economical solutions with repeatable processes. By means
            7789.  High  flow  capacity,  very  sensitively  adjustable.  When  the   of  the  inverse  function,  the  maximum  system  pressure  is  main-
            operating pressure adjusted by means of the proportional solenoid   tained if the electrical valve control falls out (safety function). For
            is reached, the valve opens and connects the protected line with   machining the cartridge cavity in steel and aluminum blocks, cavity
            the  drain  to  the  tank.  With  the  solenoid  deenergised,  maximum   tools  are  available  (hire  or  purchase).  Please  refer  to  the  data
            working pressure is present. If the solenoid current increases, the   sheets in register 2.13.

            pressure in port P (1) drops. The back pressure in T (2) affects the
            pressure in P (1). For the control, Wandfluh proportional amplifiers
            are available (see register 1.13).



            SYMBOL                                               ACTUATION
                                                                  Actuation          Proportional solenoid, wet pin push
                                                                                     type, pressure tight
                                                                  Execution          W.S37 / 19 x 50 (Data sheet 1.1-173)
               (T) 2
                                                                                     M.S35 / 19 x 50 (Data sheet 1.1-174)
                                                                  Connection         Connector socket EN 175301 – 803
                                                                                     Connector socket AMP Junior-Timer
                                                                                     Connector Deutsch DT04 – 2P
                   (P) 1



            TYPE CODE

                                                                           B  V  I  PM42  -     -     /        -     #
             Pressure relief valve
             Pilot operated

             Proportional, inverse
             Screw-in cartridge M42 x 2

             Nominal pressure range p    200 bar   200    350 bar   350
                              N
             Nominal voltage U      12 VDC       G12
                         N
                                    24 VDC       G24
                                    without coil   X5
             Slip-on coil           Metal housing round              W
                                    Metal housing square             M
             Connection execution   Connector socket EN 175301-803 / ISO 4400   D
                                    Connector socket AMP Junior - Timer   J
                                    Connector Deutsch DT04 - 2P      G

             Sealing material       NBR
                                    FKM (Viton)   D1

             Design index (subject to change)
             2.3-591



                               www.wandfluh.com  Illustrations are not binding  Data subject to change  1/4  Edition: 22 02  2.3-591 E
