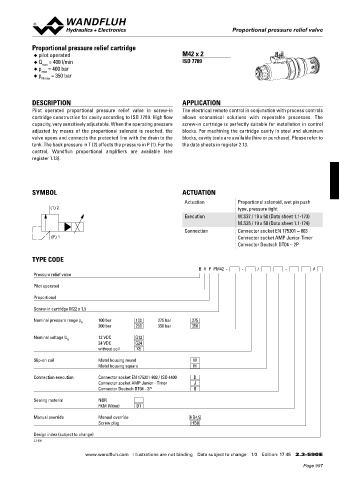

Proportional pressure relief valve
Proportional pressure relief valve

Proportional pressure relief cartridge
◆ pilot operated M42 x 2
◆ Q = 400 l/min ISO 7789
max
◆ p = 400 bar
max
◆ p = 350 bar
N max

DESCRIPTION APPLICATION
Pilot operated proportional pressure relief valve in screw-in The electrical remote control in conjunction with process controls
cartridge construction for cavity according to ISO 7789. High flow allows economical solutions with repeatable processes. The
capacity, very sensitively adjustable. When the operating pressure screw-in cartridge is perfectly suitable for installation in control
adjusted by means of the proportional solenoid is reached, the blocks. For machining the cartridge cavity in steel and aluminum
valve opens and connects the protected line with the drain to the blocks, cavity tools are available (hire or purchase). Please refer to
tank. The back pressure in T (2) affects the pressure in P (1). For the the data sheets in register 2.13.

control, Wandfluh proportional amplifiers are available (see

register 1.13).

SYMBOL ACTUATION
Actuation Proportional solenoid, wet pin push
(T) 2 type, pressure tight
Execution W.S37 / 19 x 50 (Data sheet 1.1-173)
M.S35 / 19 x 50 (Data sheet 1.1-174)
Connection Connector socket EN 175301 – 803
(P) 1 Connector socket AMP Junior-Timer
Connector Deutsch DT04 – 2P

TYPE CODE
B V P PM42 - - / - #
Pressure relief valve
Pilot operated
Proportional

Screw-in cartridge M22 x 1,5

Nominal pressure range p N 100 bar 100 275 bar 275
200 bar 200 350 bar 350
Nominal voltage U 12 VDC G12
N
24 VDC G24
without coil X5
Slip-on coil Metal housing round W
Metal housing square M
Connection execution Connector socket EN 175301-803 / ISO 4400 D
Connector socket AMP Junior - Timer J
Connector Deutsch DT04 - 2P G
Sealing material NBR
FKM (Viton) D1

Manual override Manual override HB4,5
Screw plug HB0

Design index (subject to change)
2.3-590

www.wandfluh.com Illustrations are not binding Data subject to change 1/3 Edition: 17 45 2.3-590 E
