Digital controller module SD7
Digital controller modul

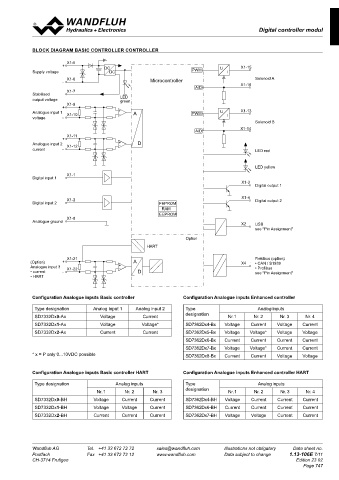

BLOCK DIAGRAM BASIC CONTROLLER CONTROLLER

X1-5
+ DC U X1-15
Supply voltage DC PWM I
X1-6 Microcontroller Solenoid A
-
A/D X1-16
X1-7
Stabilised LED
output voltage green
X1-9
+
Analogue input 1 X1-10 + - A PWM U X1-13
voltage - I
Solenoid B
X1-14
A/D
X1-11
+
Analogue input 2 X1-12 + - D
current - LED red

LED yellow
X1-1
Digital input 1
X1-3
Digital output 1
X1-4
X1-2 Digital output 2
Digital input 2 FEPROM
RAM
EEPROM
X1-8
Analogue ground
X2 USB
see "Pin Assignment"
Option
HART

X1-21 Fieldbus (option)
(Option) + A X4 • CAN / S1939
Analogue input 3 X1-22 + - • Profibus
• current - D see "Pin Assignment"
• HART

Configuration Analogue inputs Basic controller Configuration Analogue inputs Enhanced controller

Type designation Analog input 1 Analog input 2 Type Analog inputs
designation
SD7332Dx0-Ax Voltage Current Nr. 1 Nr. 2 Nr. 3 Nr. 4
SD7332Dx1-Ax Voltage Voltage* SD7362Dx4-Bx Voltage Current Voltage Current
SD7332Dx2-Ax Current Current SD7362Dx5-Bx Voltage Voltage* Voltage Voltage
SD7362Dx6-Bx Current Current Current Current
SD7362Dx7-Bx Voltage Voltage* Current Current
* x = P only 0...10VDC possible SD7362Dx8-Bx Current Current Voltage Voltage

Configuration Analogue inputs Basic controller HART Configuration Analogue inputs Enhanced controller HART
Type designation Analog inputs Type Analog inputs
Nr. 1 Nr. 2 Nr. 3 designation Nr. 1 Nr. 2 Nr. 3 Nr. 4
SD7332Dx0-BH Voltage Current Current SD7362Dx4-BH Voltage Current Current Current
SD7332Dx1-BH Voltage Voltage Current SD7362Dx6-BH Current Current Current Current
SD7332Dx2-BH Current Current Current SD7362Dx7-BH Voltage Voltage Current Current
