Digital controller modul
Digital controller module SD7

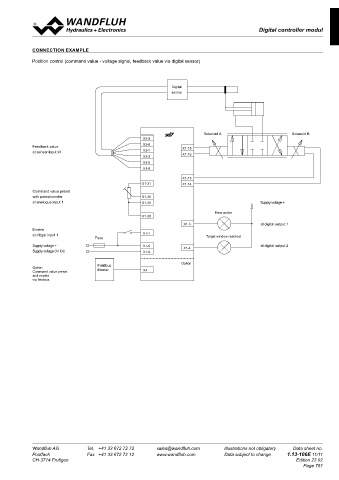

CONNECTION EXAMPLE

Position control (command value - voltage signal, feedback value via digital sensor)

Digital
sensor

SD7 Solenoid A Solenoid B
X3-9
X3-8
Feedback value X1-15
at sensor input x3 X3-1
X3-2 X1-16
X3-5
X3-6
X1-13
X1-31 X1-14
Command value preset
with potentiometer X1-25
at analogue input 1 X1-26 Supply voltage +
Error active
X1-30
X1-3 at digital output 1
Enable
at ditigal input 1 X1-1
Fuse Target window reached
Supply voltage + X1-5 X1-4 at digital output 2
Supply voltage 0V DC X1-6

Option
Fieldbus
Option
Command value preset Master X4
and enable
via fieldbus
