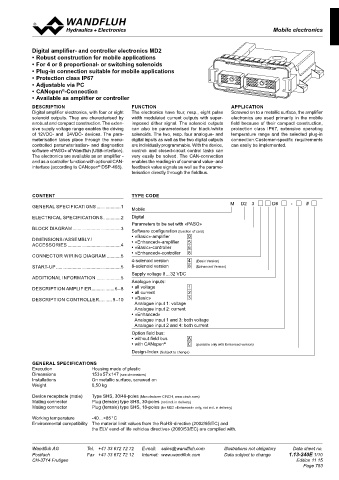

141,35 Mobile electronics
Mobile electronics MD2
153,2
Digital amplifier- and controller electronics MD2
• Robust construction for mobile applications
• For 4 or 8 proportional- or switching solenoids
• Plug-in connection suitable for mobile applications
• Protection class IP67 1
• Adjustable via PC
• CANopen -Connection
®
• Available as amplifier or controller
148
DESCRIPTION FUNCTION APPLICATION
Digital amplifier electronics, with four or eight The electronics have four, resp., eight pulse Screwed on to a metallic surface, the amplifier
solenoid outputs. They are characterised by width modulated current outputs with super- electronics are used primarily in the mobile
a robust and compact construction. The exten- imposed dither signal. The solenoid outputs field because of their compact construction,
sive supply voltage range enables the driving can also be parameterised for black /white protection class IP67, extensive operating
of 12VDC- and 24VDC- devices. The para- solenoids. The two, resp. four analogue- and temperature range and the selected plug-in
meterisation takes place through the menu- digital inputs as well as the two digital outputs connection.Customer-specific requirements
controlled parameterisation- and diagnostics are individually programmable. With the device, can easily be implemented.
software «PASO» of Wandfluh (USB-interface). control- and closed-circuit control tasks can
The electronics are available as an amplifier - very easily be solved. The CAN-connection
and as a controller function with optional CAN- enables the reading-in of command value- and
interface (according to CANopen DSP-408). feedback value signals as well as the parame-
®
terisation directly through the fieldbus.

CONTENT TYPE CODE
M D2 3 D8 - #
GENERAL SPECIFICATIONS ...................1 Mobile
ELECTRICAL SPECIFICATIONS ..............2 Digital
Parameters to be set with «PASO»
BLOCK DIAGRAM ......................................3
Software configuration (function of card)
• «Basic»-amplifier 0
DIMENSIONS / ASSEMBLY / • «Enhanced»-amplifier 5
ACCESSORIES ..........................................4
• «Basic»-controller 6
• «Enhanced»-controller 8
CONNECTOR WIRING DIAGRAM ...........5
4-solenoid version 4 (Basic Version)
START-UP ...................................................5 8-solenoid version 8 (Enhanced Version)
Supply voltage 8 ... 32 VDC
ADDITIONAL INFORMATION ...................5
Analogue inputs:
DESCRIPTION AMPLIFIER ..................6 – 8 • all voltage 1
• all current 2
DESCRIPTION CONTROLLER .......... 9 –10 • «Basic» 3
Analogue input 1: voltage
Analogue input 2: current
• «Enhanced»
Analogue input 1 and 3: both voltage
Analogue input 2 and 4: both current
Option field bus:
• without field bus A
• with CANopen C (possible only with Enhanced version)
®
Design-Index (Subject to change)
GENERAL SPECIFICATIONS
Execution Housing made of plastic
Dimensions 153 x 57 x 147 (see dimensions)
Installations On metallic surface, screwed on
Weight 0,50 kg
Device receptacle (male) Type SHS, 30/48-poles (Manufacturer CINCH, www.cinch.com)
Mating connector Plug (female) type SHS, 30-poles (not incl. in delivery)
Mating connector Plug (female) type SHS, 18-poles (for MD2 «Enhanced» only, not incl. in delivery)

Working temperature -40…+85 °C
Environmental compatibility The material limit values from the RoHS-directive (2002/95/EC) and
the ELV «end-of life vehicles directive» (2000/53/EC) are complied with.
