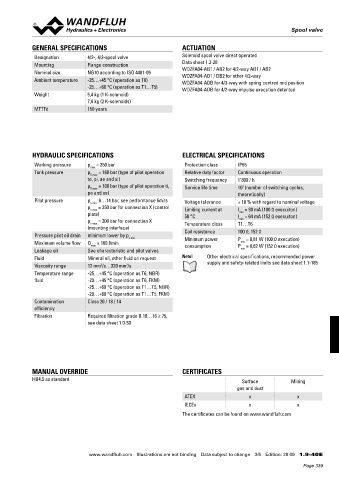

Spool valve
                                                                                                       Spool valve


            GENERAL SPECIFICATIONS                               ACTUATION
             Designation        4/2-, 4/3-spool valve            Solenoid spool valve direct operated
             Mounting           Flange construction              Data sheet 1.3-28
             Nominal size       NG10 according to ISO 4401-05    WDZFA04-AB1 / AB2 for 4/2-way AB1 / AB2
                                                                 WDZFA04-AD1 / DB2 for other 4/2-way
             Ambient temperature  -25…+45 °C (operation as T6)   WDZFA04-ADB for 4/3-way with spring centred mid position
                                -25…+60 °C (operation as T1…T5)  WDZFA04-ADB for 4/2-way impulse execution detented
             Weight             5,4 kg (1 K-solenoid)
                                7,6 kg (2 K-solenoids)
             MTTFd              150 years








            HYDRAULIC SPECIFICATIONS                             ELECTRICAL SPECIFICATIONS
             Working pressure   p  = 350 bar                      Protection class   IP65
                                 max
             Tank pressure      p T max  = 160 bar (type of pilot operation   Relative duty factor  Continuous operation
                                te, pi, ae and xi)                Switching frequency  1'800 / h
                                p T max  = 100 bar (type of pilot operation ti,   Service life time  10  (number of switching cycles,
                                                                                      7
                                pe and xe)                                           theoretically)
             Pilot pressure     p v min : 8…14 bar, see performance limits  Voltage tolerance  ± 10 % with regard to nominal voltage
                                p v max  = 350 bar for connection X (control   Limiting current at  I  = 90 mA (100 Ω execuiton)
                                                                                     min
                                plate)                            50 °C              I  = 64 mA (152 Ω execuiton)
                                                                                     min
                                p v max  = 200 bar for connection X   Temperature class  T1…T6
                                (mounting interface)              Coil resistance    100 Ω, 152 Ω
             Pressure pilot oil drain  minimum lower by p
                                              v min               Minimum power      P  = 0,81 W (100 Ω execution)
             Maximum volume flow  Q  = 160 l/min                                      min
                                 max                              consumption        P  = 0,62 W (152 Ω execution)
             Leakage oil        See characteristic and pilot valves                   min
             Fluid              Mineral oil, other fluid on request  Note!  Other electrical specifications, recommended power
             Viscosity range    12 mm /s…320 mm /s                        supply and safety-related limits see data sheet 1.1-185
                                    2
                                             2
             Temperature range   -25…+45 °C (operation as T6, NBR)
             fluid              -20…+45 °C (operation as T6, FKM)
                                -25…+60 °C (operation as T1…T5, NBR)
                                -20…+60 °C (operation as T1…T5, FKM)
             Contamination      Class 20 / 18 / 14
             efficiency
             Filtration         Required filtration grade ß 10…16 ≥ 75,
                                see data sheet 1.0-50








            MANUAL OVERRIDE                                      CERTIFICATES
            HB4,5 as standard                                                         Surface          Mining
                                                                                    gas and dust
                                                                  ATEX                  x                x
                                                                  IECEx                 x                x
                                                                 The certificates can be found on www.wandfluh.com







                                www.wandfluh.com  Illustrations are not binding  Data subject to change  3/6  Edition: 20 09  1.9-40 E
