Spool valve
                                                                                                  Spool valve                                                                                                                 Spool valve

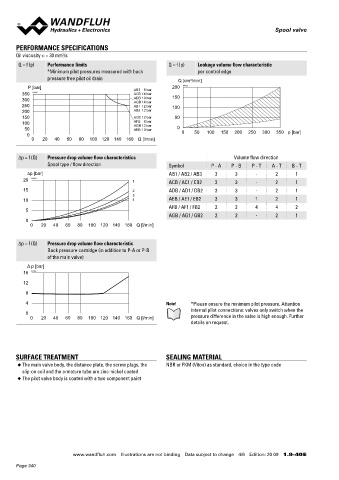

       PERFORMANCE SPECIFICATIONS                                                                                                  DIMENSIONS
       Oil viscosity u = 30 mm /s                                                                                                  4/3-way spool valve (spring centring)
                       2
                                                                                                                                   4/2-way spool valve (impulse)
       Q = f (p)  Performance limits                        Q = f (p)  Leakage volume flow characteristic
                  *Minimum pilot pressures measured with back         per control edge                                                                          304.7
                  pressure free pilot oil drain                 Q [cm /min]                                                                                     57.2                                        45
                                                                    3
           P [bar]                              AB3  8 bar   200  K4123
         350  K4122                             ACB 14 bar
         300                                    ADB 10 bar   150
                                                AGB 14 bar
         250                                    AB1  12 bar  100                                                                                                20
         200                                    AB2  12 bar
         150                                    ACB 12 bar    50
         100                                    AFB  8 bar
                                                AGB 12 bar
          50                                    AEB 10 bar     0
           0                                                     0   50   100  150  200  250  300  350 p [bar]                           a                                            b
            0   20   40   60   80  100 120 140 160  Q [l/min]                                                                                                                                                            191.1
                                                                                                                                          80          Y=G1/8"          X=G1/8"                                        19.5
                                                                                                                                          70
       ∆p = f (Q)  Pressure drop volume flow characteristics                       Volume flow direction                                  90*
                  Spool type / flow direction               Symbol         P - A  P - B  P - T   A - T  B - T                             60
           ∆p [bar]                                         AB1 / AB2 / AB3  3      3      -      2      1                                     35                                                                     69.1
         20  K4124                              1           ACB / AC1 / CB2  3      3      -      2      1                                                                       29
         15                                     2           ADB / AD1 / DB2  3      3      -      2      1
                                                3
         10                                     4           AEB / AE1 / EB2  3      3      1      2      1                                10         40   30       6.5                                      68
                                                            AFB / AF1 / FB2  2      2      4      4      2                                                         10.5
          5
                                                            AGB / AG1 / GB2  2      2      -      2      1                                           20.1       93.2
          0
            0   20   40   60   80  100 120 140 160  Q [l/min]                                                                                                   133.4


                                                                                                                                   * Pos.90 Control plate with type of pilot operation te, pi, pe only
       ∆p = f (Q)  Pressure drop volume flow characteristic                                                                        4/2-way spool valve (spring reset)
                  Back pressure cartridge (in addition to P-A or P-B                                                                                 189.1
                  of the main valve)
           Δ p [bar]
         16  K4132
         12

          8
          4                                                Note!    *Please ensure the minimum pilot pressure. Attention                 a
                                                                    internal pilot connections: valves only switch when the                                                          171.6
          0                                                                                                                                                                      12
            0   20   40   60   80  100 120 140 160  Q [l/min]       pressure difference in the valve is high enough. Further
                                                                    details on request.





       SURFACE TREATMENT                                   SEALING MATERIAL

       ◆  The main valve body, the distance plate, the screw plugs, the   NBR or FKM (Viton) as standard, choice in the type code                       219.1
         slip-on coil and the armature tube are zinc-nickel coated
       ◆  The pilot valve body is coated with a two component paint
