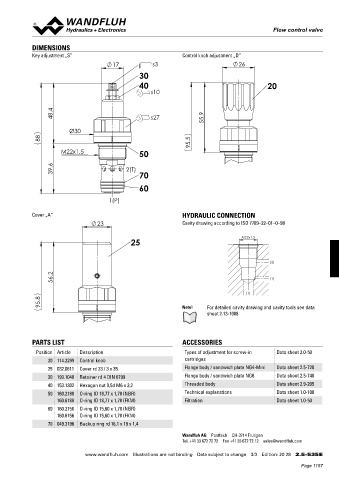

Flow control valve
Flow control valve

DIMENSIONS
Key adjustment „S” Control knob adjustment „D”
17 s3 26
30
40 20
s10

48.4 s27 55.9

Ø30
88 95.5

M22x1.5 50

39.6 2(T) 70

60

1(P)

Cover „A” HYDRAULIC CONNECTION
23 Cavity drawing according to ISO 7789–22–01–0–98

25 M22x1.5

(2)
56.2 (1)

(1)
95.8 Note! For detailed cavity drawing and cavity tools see data

sheet 2.13-1008

PARTS LIST ACCESSORIES
Position Article Description Types of adjustment for screw-in Data sheet 2.0-50
20 114.2299 Control knob cartridges
25 032.0611 Cover rd 23 / 3 x 35 Flange body / sandwich plate NG4-Mini Data sheet 2.5-720
30 193.1040 Retainer rd 4 DIN 6799 Flange body / sandwich plate NG6 Data sheet 2.5-740
40 153.1302 Hexagon nut 0,5d M6 x 3,2 Threaded body Data sheet 2.9-205
50 160.2188 O-ring ID 18,77 x 1,78 (NBR) Technical explanations Data sheet 1.0-100
160.6188 O-ring ID 18,77 x 1,78 (FKM) Filtration Data sheet 1.0-50
60 160.2156 O-ring ID 15,60 x 1,78 (NBR)
160.6156 O-ring ID 15,60 x 1,78 (FKM)
70 049.3196 Backup ring rd 16,1 x 19 x 1,4
