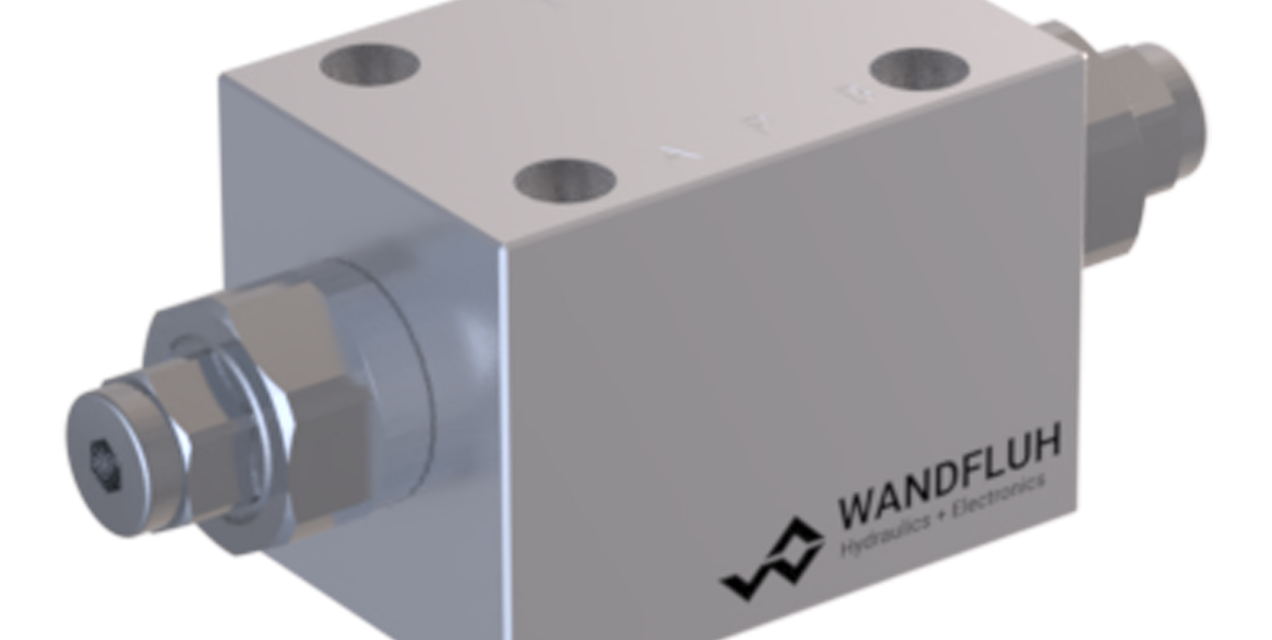

Hydraulically operated spool valve
Description
Direct operated spool valve hydraulically operated via pilot port with 4 connections in a 5 chamber system. Spool detented or with spring reset. Without actuation, the spool is held in the center position by the spring (4/3), or switched back to the offset position (4/2). With the detent, the spool is held in the last switching position selected.
Application
Spool valves are mainly used for controlling direction of movement and stopping of hydraulic cylinders and motors. The direction of movement is determined by the position of the valve piston and its symbol. The stainless steel version is particularly suitable for use in wet and salty environments.
Key facts
Spool valve
- Flange construction
- hydraulically operated
- 4/2-way impulse valve
- 4/3-way with spring centred mid position
- 4/2-way with spring reset
- Qmax = 50 l/min
- pmax = 350 bar
