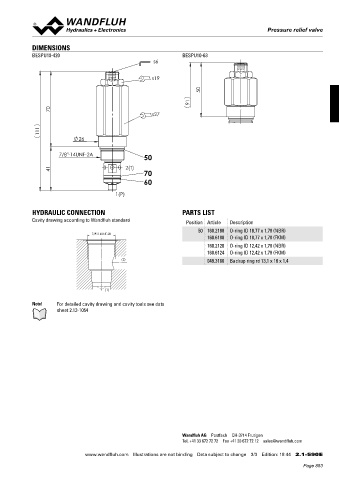

P. 853
Pressure relief valve
Pressure relief valve
DIMENSIONS
BESPU10-420 BESPU10-63
50
70
60
HYDRAULIC CONNECTION PARTS LIST
Cavity drawing according to Wandfluh standard Position Article Description
7/8"-14UNF-2B 50 160.2188 O-ring ID 18,77 x 1,78 (NBR)
160.6188 O-ring ID 18,77 x 1,78 (FKM)
160.2120 O-ring ID 12,42 x 1,78 (NBR)
160.6124 O-ring ID 12,42 x 1,78 (FKM)
(2) 049.3166 Backup ring rd 13,1 x 16 x 1,4
(1)
Note! For detailed cavity drawing and cavity tools see data
sheet 2.13-1054
Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 sales@wandfluh.com
www.wandfluh.com Illustrations are not binding Data subject to change 3/3 Edition: 18 44 2.1-590 E
