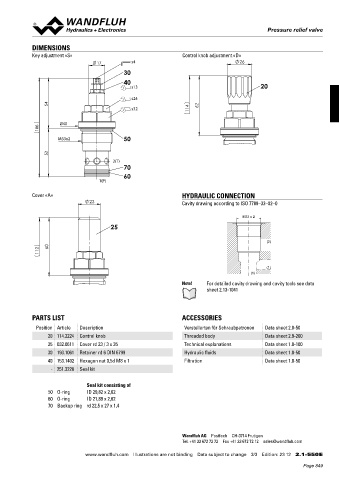

Page 849 - Softbound_Edition_19_en

BV.PM33
Pressure relief valve

DIMENSIONS
Key adjustment «S» Control knob adjustment «D»
17 s4
30
40
s13 20

s24
54
s32

Ø40
106

M33x2 50

52
2(T)
70
60
1(P)

Cover «A» HYDRAULIC CONNECTION
Cavity drawing according to ISO 7789–33–02–0

M33 x 2
25

(2)

(1)
(1)

Note! For detailed cavity drawing and cavity tools see data
sheet 2.13-1041

PARTS LIST ACCESSORIES
Position Article Description Verstellarten für Schraubpatronen Data sheet 2.0-50
20 114.2224 Control knob Threaded body Data sheet 2.9-200
25 032.0611 Cover rd 23 / 3 x 35 Technical explanations Data sheet 1.0-100
30 193.1061 Retainer rd 6 DIN 6799 Hydraulic fluids Data sheet 1.0-50
40 153.1402 Hexagon nut 0,5d M8 x 1 Filtration Data sheet 1.0-50
- 251.3228 Seal kit

Seal kit consisting of
50 O-ring ID 29,82 x 2,62
60 O-ring ID 21,89 x 2,62
70 Backup ring rd 22,5 x 27 x 1,4

Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 sales@wandfluh.com

www.wandfluh.com Illustrations are not binding Data subject to change 3/3 Edition: 23 12 2.1-550 E
