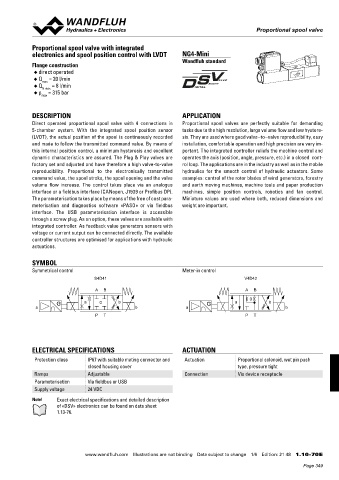

Proportional spool valve
                                                                                           Proportional spool valve


            Proportional spool valve with integrated
              electronics and spool position control with LVDT   NG4-Mini
                                                                 Wandfluh standard
            Flange construction
             ◆  direct operated
             ◆  Q  = 20 l/min
                max
             ◆  Q N max  = 8 l/min
             ◆  p  = 315 bar
                max

            DESCRIPTION                                          APPLICATION
            Direct  operated  proportional  spool  valve  with  4  connections  in   Proportional  spool  valves  are  perfectly  suitable  for  demanding
            5-chamber  system.  With  the  integrated  spool  position  sensor   tasks due to the high resolution, large volume flow and low hystere-
            (LVDT), the actual position of the spool is continuously recorded   sis. They are used where good valve–to–valve reproducibility, easy
            and made to follow the transmitted command value. By means of   installation, comfortable operation and high precision are very im-
            this internal position control, a minimum hysteresis and excellent   portant. The integrated controller reliefs the machine control and
            dynamic characteristics are assured. The Plug & Play valves are   operates the axis (position, angle, pressure, etc.) in a closed  cont-
            factory set and adjusted and have therefore a high valve-to-valve   rol loop. The applications are in the industry as well as in the mobile
            reproducibility.  Proportional  to  the  electronically  transmitted   hydraulics  for  the  smooth  control  of  hydraulic  actuators.  Some
              command value, the spool stroke, the spool opening and the valve     examples: control of the rotor blades of wind generators, forestry
            volume  flow  increase.  The  control  takes  place  via  an  analogue   and earth moving machines, machine tools and paper production
              interface or a fieldbus interface (CANopen, J1939 or Profibus DP).   machines,  simple  position  controls,  robotics  and  fan  control.
            The parameterisation takes place by means of the free of cost para -    Miniature  values  are  used  where  both,  reduced  dimensions  and
            meterisation  and  diagnostics  software  «PASO»  or  via  fieldbus   weight are important.
              interface.  The  USB  parameterisation  interface  is  accessible
              through a screw plug. As an option, these valves are available with
            integrated controller. As feedback value generators sensors with
            voltage or current output can be connected directly. The available
            controller structures are optimised for applications with hydraulic
            actuations.


            SYMBOL
            Symmetrical control                                  Meter-in control
                                  S4D41                                                V4D42

                                  A  B                                                 A  B
                                                                                         0
                               a    0      b                                        a          b
              a                                  b                a                                  b
                                  P  T                                                 P  T





            ELECTRICAL SPECIFICATIONS                            ACTUATION
             Protection class   IP67 with suitable mating connector and   Actuation  Proportional solenoid, wet pin push
                                closed housing cover                                 type, pressure tight
             Ramps              Adjustable                        Connection         Via device receptacle
             Parameterisation   Via fieldbus or USB
             Supply voltage     24 VDC
            Note!    Exact electrical specifications and detailed description
                     of «DSV» electronics can be found on data sheet
                     1.13-76.







                               www.wandfluh.com  Illustrations are not binding  Data subject to change  1/6  Edition: 21 48  1.10-70 E
