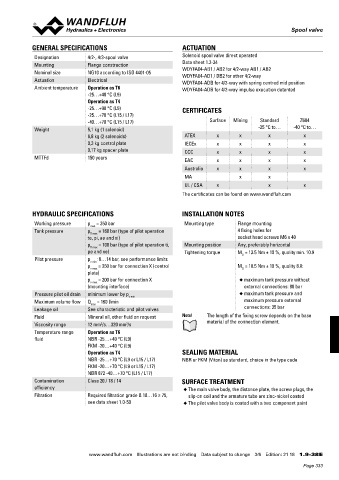

                                                                                                       Spool valve


            GENERAL SPECIFICATIONS                               ACTUATION
             Designation        4/2-, 4/3-spool valve            Solenoid spool valve direct operated
             Mounting           Flange construction              Data sheet 1.3-24
             Nominal size       NG10 according to ISO 4401-05    WDYFA04-AB1 / AB2 for 4/2-way AB1 / AB2
                                                                 WDYFA04-AD1 / DB2 for other 4/2-way
             Actuation          Electrical                       WDYFA04-ADB for 4/3-way with spring centred mid position
             Ambient temperature  Operation as T6                WDYFA04-ADB for 4/2-way impulse execution detented
                                -25…+40 °C (L9)
                                Operation as T4
                                -25…+90 °C (L9)                  CERTIFICATES
                                -25…+70 °C (L15 / L17)
                                -40…+70 °C (L15 / L17)                     Surface  Mining  Standard      Z604
             Weight             5,1 kg (1 solenoid)                                         -25 °C to…  -40 °C to…
                                6,8 kg (2 solenoids)              ATEX       x       x         x            x
                                0,3 kg control plate              IECEx      x       x         x            x
                                0,17 kg spacer plate              CCC        x       x         x            x
             MTTFd              150 years                         EAC        x       x         x            x
                                                                  Australia  x       x         x            x
                                                                  MA                 x         x
                                                                  UL / CSA   x                 x            x
                                                                 The certificates can be found on www.wandfluh.com


            HYDRAULIC SPECIFICATIONS                             INSTALLATION NOTES
             Working pressure   p  = 350 bar                      Mounting type      Flange mounting
                                 max
             Tank pressure      p T max  = 160 bar (type of pilot operation          4 fixing holes for
                                te, pi, ae and xi)                                   socket head screws M6 x 40
                                p T max  = 100 bar (type of pilot operation ti,   Mounting position  Any, preferably horizontal
                                pe and xe)                        Tightening torque  M  = 13.5 Nm ± 10 %, quality min. 10.9
             Pilot pressure     p v min : 8…14 bar, see performance limits            D
                                p v max  = 350 bar for connection X (control         M  = 10.5 Nm ± 10 %, quality 8.8:
                                                                                      D
                                plate)
                                p v max  = 200 bar for connection X                  ◆  maximum tank pressure without
                                (mounting interface)                                   external connections: 80 bar
             Pressure pilot oil drain  minimum lower by p                            ◆  maximum tank pressure and
                                              v min
             Maximum volume flow  Q  = 160 l/min                                       maximum pressure external
                                 max
             Leakage oil        See characteristic and pilot valves                    connections: 35 bar
             Fluid              Mineral oil, other fluid on request  Note!  The length of the fixing screw depends on the base
             Viscosity range    12 mm /s…320 mm /s                        material of the connection element.
                                    2
                                             2
             Temperature range   Operation as T6
             fluid              NBR -25…+40 °C (L9)
                                FKM -20…+40 °C (L9)
                                Operation as T4                  SEALING MATERIAL
                                NBR -25…+70 °C (L9 or L15 / L17)  NBR or FKM (Viton) as standard, choice in the type code
                                FKM -20…+70 °C (L9 or L15 / L17)
                                NBR 872 -40…+70 °C (L15 / L17)
             Contamination      Class 20 / 18 / 14               SURFACE TREATMENT
             efficiency                                          ◆  The main valve body, the distance plate, the screw plugs, the
             Filtration         Required filtration grade ß 10…16 ≥ 75,   slip-on coil and the armature tube are zinc-nickel coated
                                see data sheet 1.0-50            ◆  The pilot valve body is coated with a two component paint










                                www.wandfluh.com  Illustrations are not binding  Data subject to change  3/6  Edition: 21 18  1.9-38 E
