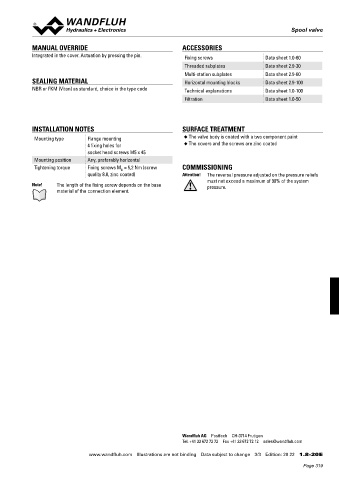

Page 319 - Softbound_Edition_19_en
P. 319
Spool valve
Spool valve
MANUAL OVERRIDE ACCESSORIES
Integrated in the cover. Actuation by pressing the pin. Fixing screws Data sheet 1.0-60
Threaded subplates Data sheet 2.9-30
Multi-station subplates Data sheet 2.9-60
SEALING MATERIAL Horizontal mounting blocks Data sheet 2.9-100
NBR or FKM (Viton) as standard, choice in the type code Technical explanations Data sheet 1.0-100
Filtration Data sheet 1.0-50
INSTALLATION NOTES SURFACE TREATMENT
Mounting type Flange mounting ◆ The valve body is coated with a two component paint
4 fixing holes for ◆ The covers and the screws are zinc coated
socket head screws M5 x 45
Mounting position Any, preferably horizontal
Tightening torque Fixing screws M = 5,2 Nm (screw COMMISSIONING
D
quality 8.8, zinc coated) Attention! The reversal pressure adjusted on the pressure reliefs
must not exceed a maximum of 90% of the system
Note! The length of the fixing screw depends on the base pressure.
material of the connection element.
Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 sales@wandfluh.com
www.wandfluh.com Illustrations are not binding Data subject to change 3/3 Edition: 20 22 1.8-20 E
