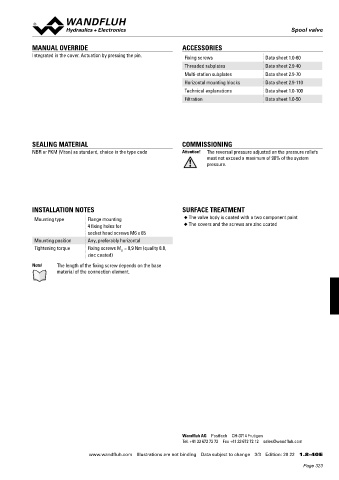

Page 323 - Softbound_Edition_19_en

Spool valve
Spool valve

MANUAL OVERRIDE ACCESSORIES
Integrated in the cover. Actuation by pressing the pin. Fixing screws Data sheet 1.0-60

Threaded subplates Data sheet 2.9-40
Multi-station subplates Data sheet 2.9-70
Horizontal mounting blocks Data sheet 2.9-110
Technical explanations Data sheet 1.0-100
Filtration Data sheet 1.0-50

SEALING MATERIAL COMMISSIONING
NBR or FKM (Viton) as standard, choice in the type code Attention! The reversal pressure adjusted on the pressure reliefs
must not exceed a maximum of 90% of the system
pressure.

INSTALLATION NOTES SURFACE TREATMENT
Mounting type Flange mounting ◆ The valve body is coated with a two component paint
4 fixing holes for ◆ The covers and the screws are zinc coated
socket head screws M6 x 65
Mounting position Any, preferably horizontal
Tightening torque Fixing screws M = 8,9 Nm (quality 8.8,
D
zinc coated)
Note! The length of the fixing screw depends on the base
material of the connection element.

Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 sales@wandfluh.com

www.wandfluh.com Illustrations are not binding Data subject to change 3/3 Edition: 20 22 1.8-40 E
