P. 310

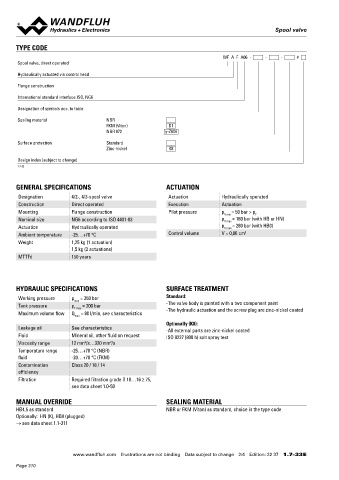

Spool valve
                                                                                                  Spool valve                                                                                                                 Spool valve


       TYPE CODE                                                                                                                   PERFORMANCE SPECIFICATIONS
                                                                                                                                                    2
                                                                               WF  A  F  A06  -     -     -     #                  Oil viscosity u = 30 mm /s
       Spool valve, direct operated                                                                                                 p = f (Q)  Performance limits                        Q  = f (Q)  Leakage volume flow characteristics
                                                                                                                                              Measured with nominal voltage -10 %         L         per control edge
       Hydraulically actuated via control head
                                                                                                                                        p [bar]                                             Q [cm /min]
                                                                                                                                                                                                 3
       Flange construction                                                                                                           350  K4285                                           150  K0232_3
                                                                                                                                     300                                     AB1/AB3/ACB/
       International standard interface ISO, NG6                                                                                     250                                     AFB/AGB      120
                                                                                                                                     200                                                   90
       Designation of symbols acc. to table                                                                                          150                                                   60
                                                                                                                                     100
       Sealing material               NBR                                                                                             50                                     BEA           30
                                      FKM (Viton)           D1                                                                         0                                                    0
                                      NBR 872              y-Z604                                                                        0   10  20  30  40   50  60  70  80  Q [l/min]       0   50  100  150  200  250  300  350 p [bar]
                                                                                                                                                                                                AB3/AB1/ACB/ADB/AFB/AGB
       Surface protection             Standard                                                                                                                                                  BEA
                                      Zinc-nickel           K8
       Design index (subject to change)                                                                                             Δp = f (Q)  Pressure drop-volume flow characteristics                       Volume flow direction
       1.7-33
                                                                                                                                      ∆p [bar]                                           Symbol         P - A  P - B  P - T  A - T  B - T
                                                                                                                                      30  K0171                       5                  AB1 / AB2 / AB3  2     2       -      1      1
       GENERAL SPECIFICATIONS                              ACTUATION                                                                  25                                   1 2           ACB / AC1 / CB2  2     2       -      1      1
                                                                                                                                      20
       Designation        4/2-, 4/3-spool valve             Actuation          Hydraulically operated                                 15                                   3             ADB / AD1 / DB2  2     2       -      3      3
       Construction       Direct operated                   Execution          Actuation                                              10                                   4             BEA / BE1 / EA2  2     2      5       2      2
       Mounting           Flange construction               Pilot pressure     p V min  = 50 bar > p T                                 5                                                 AFB / AF1 / FB2  4     4       -      3      3
       Nominal size       NG6 according to ISO 4401-03                         p V max  = 160 bar (with HB or HN)                      0  0  10  20  30  40  50  60   70  80  Q [l/min]  AGB / AG1 / GB2  4     4       -      1      1
       Actuation          Hydraulically operated                               p V max  = 280 bar (with HB0)
       Ambient temperature  -25…+70 °C                      Control volume     V = 0,06 cm 3
       Weight             1,25 kg (1 actuation)
                          1,5 kg (2 actuations)
       MTTFd              150 years                                                                                                DIMENSIONS                                           HYDRAULIC CONNECTION
                                                                                                                                   4/3-way valve (spring centring)
                                                                                                                                   4/2-way valve (impulse)                                                        17.8
                                                                                                                                                                                                             T
       HYDRAULIC SPECIFICATIONS                            SURFACE TREATMENT                                                                                                                          31   A      B          21    32.5

       Working pressure   p  = 350 bar                     Standard:
                           max                                                                                                                                                                               P
       Tank pressure      p    = 200 bar                   -The valve body is painted with a two component paint
                           T max                           -The hydraulic actuation and the screw plug are zinc-nickel coated                                                                              21.5
       Maximum volume flow  Q  = 80 l/min, see characteristics                                                                                                                                               40.5
                           max
                                                                                                                                                       139.2
                                                           Optionally (K8):
       Leakage oil        See characteristics              -All external parts are zinc-nickel coated
       Fluid              Mineral oil, other fluid on request  ISO 9227 (800 h) salt spray test                                    4/2-way valve (spring reset)
       Viscosity range    12 mm /s…320 mm /s                                                                                                        19             9.5
                                        2
                               2
       Temperature range   -25…+70 °C (NBR)                                                                                           s13         G1/8"            5.2     MD= 5.2Nm
                                                                                                                                        15
       fluid              -20…+70 °C (FKM)                                                                                          MD=5.5Nm
       Contamination      Class 20 / 18 / 14                                                                                                                                      8
       efficiency
       Filtration         Required filtration grade ß 10…16 ≥ 75,                                                                          37                                     41    49   B2        B1
                          see data sheet 1.0-50

       MANUAL OVERRIDE                                     SEALING MATERIAL                                                                                                                   B4
       HB4,5 as standard                                   NBR or FKM (Viton) as standard, choice in the type code                       60  3   70   32.6  60  50   68    12.6   60          s36
       Optionally:  HN (K), HB0 (plugged)                                                                                                                   116.2                              46
       → see data sheet 1.1-311





                           www.wandfluh.com  Illustrations are not binding  Data subject to change  2/4  Edition: 22 37  1.7-33 E                      www.wandfluh.com  Illustrations are not binding  Data subject to change  3/4  Edition: 22 37  1.7-33 E
