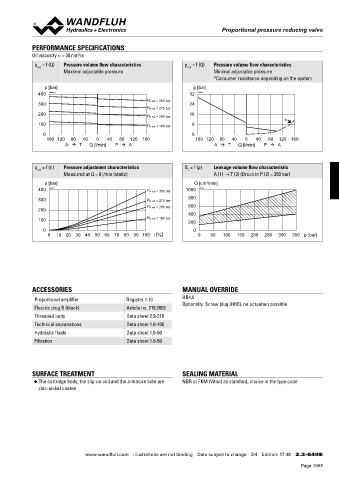

Page 1065 - Softbound_Edition_19_en

Proportional pressure reducing valve
Proportional pressure reducing valve

PERFORMANCE SPECIFICATIONS
Oil viscosity u = 30 mm /s
2
p = f (Q) Pressure volume flow characteristics p = f (Q) Pressure volume flow characteristics
red
red
Maximal adjustable pressure Minimal adjustable pressure
*Consumer resistance depending on the system
p [bar] p [bar]
400 K0658_1 32 K0659
P N red = 350 bar
300 24
P N red = 275 bar
200 P N red = 200 bar 16
100 P N red = 100 bar 8  ∗
0 0
160 120 80 40 0 40 80 120 160 160 120 80 40 0 40 80 120 160
A  T Q [l/min] P  A A  T Q [l/min] P  A

p = f (n) Pressure adjustment characteristics Q = f (p) Leakage volume flow characteristic
red L
Measured at Q = 0 l/min (static) A (1) → T (3) (Druck in P (2) = 350 bar)
p [bar] Q [cm /min]
3
400 K0433 P N red = 350 bar 1000 K0792
300 P N red = 275 bar 800
P N red = 200 bar 600
200
400
100 P N red = 100 bar 200
0 0
0 10 20 30 40 50 60 70 80 90 100 l [%] 0 50 100 150 200 250 300 350 p [bar]

ACCESSORIES MANUAL OVERRIDE

Proportional amplifier Register 1.13 HB4,5
Optionally: Screw plug (HB0), no actuation possible
Electric plug B (black) Article no. 219.2002
Threaded body Data sheet 2.9-210
Technical explanations Data sheet 1.0-100
Hydraulic fluids Data sheet 1.0-50
Filtration Data sheet 1.0-50

SURFACE TREATMENT SEALING MATERIAL
◆ The cartridge body, the slip-on coil and the armature tube are NBR or FKM (Viton) as standard, choice in the type code
zinc-nickel coated

www.wandfluh.com Illustrations are not binding Data subject to change 3/4 Edition: 17 48 2.3-649 E
