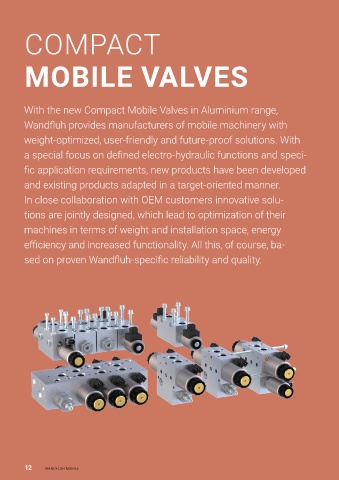

          With the new Compact Mobile Valves in Aluminium range,
          Wandfluh provides manufacturers of mobile machinery with
          weight-optimized, user-friendly and future-proof solutions. With                                                        APPLICATION                                          CMV(A) CONCEPT
          a special focus on defined electro-hydraulic functions and speci-                                                       The Compact Mobile Valve (CMV(A)) range from Wandfluh   Modular, flexible design based on:
                                                                                                                                  revolutionizes mobile hydraulic applications by offering light-
                                                                                                                                                                                       • Inlet Modules
          fic application requirements, new products have been developed                                                          weight, energy-efficient, and highly functional solutions. De-  • Control Modules
                                                                                                                                  signed for demanding environments, these valves ensure
                                                                                                                                  precise control, reliability, and flexibility, making them ideal
          and existing products adapted in a target-oriented manner.                                                              for a wide range of machinery.                       • End Control Modules
                                                                                                                                  With customizable sectional or monoblock configurations,   • Connection Modules
          In close collaboration with OEM customers innovative solu-                                                              Wandfluh’s CMV(A) valves meet specific industry needs, en-
                                                                                                                                  suring that each machine operates with maximum precision   • End Module
          tions are jointly designed, which lead to optimization of their                                                         and minimal energy loss. Additionally, redundant safety con-  CMV(A) ADVANTAGES
                                                                                                                                  trols and internal damping systems prevent oscillation, pro-
          machines in terms of weight and installation space, energy                                                              viding seamless and secure operation.                • Lightweight Design
                                                                                                                                                                                       • High Performance
          efficiency and increased functionality. All this, of course, ba-                                                                                                             • Compact Size

          sed on proven Wandfluh-specific reliability and quality.                                                                CONTROL                                              • Clever Modular Concept  requirements

                                                                                                                                  From agricultural equipment like tractors and harvesters   • Product Availability and Support
                                                                                                                                  to construction machines, forestry vehicles, and municipal
                                                                                                                                  service equipment, the CMV(A) system provides optimized   DESIGN
                                                                                                                                  hydraulic control for lifting, lowering, and positioning heavy
                                                                                                                                  loads. The proportional valve technology allows for smooth   Design of the modules:
                                                                                                                                  and responsive operation, ensuring safety and efficiency in   • Modules as a single section or
                                                                                                                                  applications such as high mast trucks, excavators, loaders,
                                                                                                                                  and even snow groomers.                              • Several sections combined in one module as a
                                                                                                                                  For material handling applications, the CMV(A) ensures pre-  monoblock
                                                                                                                                  cise load holding, preventing unwanted lowering due to lea-  • Preferred design in aluminum
                                                                                                                                  kage. In agriculture, the system offers sensitive hitch control,
                                                                                                                                  adjusting pressure according to soil conditions for optimal
                                                                                                                                  cultivation results. In construction, CMV(A) modules provide
                                                                                                                                  load-compensated control, ensuring smooth movements and
                                                                                                                                  preventing instability when lowering loads.
                                                                                                                                  No matter the industry, CMV(A) is the future of hydraulic con-
                                                                                                                                  trol, delivering performance, reliability, and innovation in the
                                                                                                                                  world of mobile machinery.
