PROPORTIONAL    Ya      A  B      Yb  Ya     A  B                           Yb         Ya       A  B      Yb




                                     7
                                                                               L  ø**  LS  T1  P  P Pilot  P L  P Pilot 4  5  5
 MOBILE VALVES      a    LSA T  A  P  B T  LSB  b  a  LSA T  A P  B T  LSB  b  a  LSA  T A P  B T  LSB  b  6  a  LSA  T  A P  B T  LSB  b
                                    P Pilot
                P Pilot
                                                         P Pilot


                                                                                   ø0.6 ø**
             Z                                                                        LS                      Z
             P T2                                                                      P                      P T2

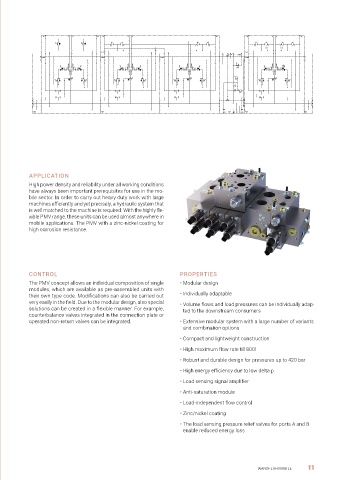

 The Proportional Mobile Valves (PMV) range describes a fle-  9  8              LS ø**  1  MP  P  T  LS T1 ø**  *  2  3
 xible hydraulic concept that can be individually configured   1: Reduction inlet plate 22/16
            2: Control section size 16
            3: End plate size 16
            4: Connection plate size 16
            5: Shock suction valves
            6: Reducing valve pilot pressure
            7: Twin connection plate size 22
            8: Control section size 22
            9: End plate size 22
 and modularly adapted for any type of application. An inter-
 nal pressure compensator is already installed as standard and
 results in precise, load-independent and sensitive control.                                            Gezeichnet
           APPLICATION                                                                                  Geprüft
                                                                                                        Freigegeben
                                                                               Rev.  Datum  Name Änderungsnr.  Änderungsbeschrieb  Ersetzt durch:
           High power density and reliability under all working conditions                              Ersatz für:  Format
                                                                                                        Dok.-Nr.
                                                                                                                A2
           have always been important prerequisites for use in the mo-                   Dokument darf ohne schriftliche Einwilligung weder kopiert,  Art.-Nr.  Revision
                                                                                         verwertet noch an Dritte weitergegeben werden.
           bile sector. In order to carry out heavy duty work with large                 Zuwiderhandlung ist strafbar und wird gerichtlich verfolgt.  Blatt 1 von  1
           machines efficiently and yet precisely, a hydraulic system that
           is well matched to the machine is required. With the highly fle-
           xible PMV range, these units can be used almost anywhere in
           mobile applications. The PMV with a zinc-nickel coating for
           high corrosion resistance.






           CONTROL                                              PROPERTIES
           The PMV concept allows an individual composition of single   • Modular design
           modules, which are available as pre-assembled units with
           their own type code. Modifications can also be carried out   • Individually adaptable
           very easily in the field. Due to the modular design, also special   • Volume flows and load pressures can be individually adap-
           solutions can be created in a flexible manner. For example,   ted to the downstream consumers
           counterbalance valves integrated in the connection plate or
           operated non-return valves can be integrated.        • Extensive modular system with a large number of variants
                                                                 and combination options
                                                                • Compact and lightweight construction

                                                                • High maximum flow rate till 800l
                                                                • Robust and durable design for pressures up to 420 bar
                                                                • High energy efficiency due to low delta p

                                                                • Load sensing signal amplifier
                                                                • Anti-saturation module

                                                                • Load-independent flow control
                                                                • Zinc/nickel coating
                                                                • The load sensing pressure relief valves for ports A and B
                                                                 enable reduced energy loss
