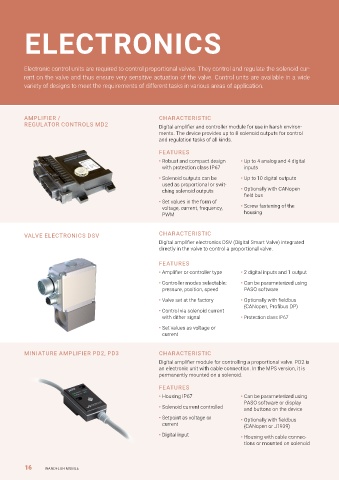

ELECTRONICS                                                                                                             SOFTWARE







          Electronic control units are required to control proportional valves. They control and regulate the solenoid cur-       With the PASO software, the entire configuration and parameterization can be carried out via the intuitive
          rent on the valve and thus ensure very sensitive actuation of the valve. Control units are available in a wide          user interface using a laptop. In addition, the software also offers the option of troubleshooting by recording
          variety of designs to meet the requirements of different tasks in various areas of application.                         all important signals or analyzing them in real time on the screen.





          AMPLIFIER /                                    CHARACTERISTIC                                                           FUNCTIONALITIES
          REGULATOR CONTROLS MD2                         Digital amplifier and controller module for use in harsh environ-        Despite the large number of possible applications, PASO is very
                                                         ments. The device provides up to 8 solenoid outputs for control          clearly designed and easy to use. The function process is dis-
                                                         and regulation tasks of all kinds.                                       played on the screen as a block diagram. Clicking on one of the
                                                                                                                                  block diagram symbols opens a menu window in which the pa-
                                                         FEATURES                                                                 rameters associated with the process can be set. In addition to
                                                         • Robust and compact design   • Up to 4 analog and 4 digital             the connecting lines between the blocks, the actual value mea-
                                                          with protection class IP67   inputs                                     sured in real time is also displayed, which is passed on to the
                                                                                                                                  following block. This allows the effects of a parameter change
                                                         • Solenoid outputs can be    • Up to 10 digital outputs                  to be tracked across the entire system on the computer and fine
                                                          used as proportional or swit-                                           adjustments to be implemented quickly and specifically. Finally,
                                                          ching solenoid outputs      • Optionally with CANopen
                                                                                       field bus                                  the set values can be saved in a parameter file and can also be
                                                         • Set values in the form of                                              loaded directly into a new electronic module.
                                                          voltage, current, frequency,   • Screw fastening of the
                                                          PWM                          housing
                                                                                                                                  PARAMETERIZATION AND PROGRAMMING                     ADDITIONAL VERSIONS

          VALVE ELECTRONICS DSV                          CHARACTERISTIC                                                           • PC software PASO (freely available)                • Customized software extensions
                                                         Digital amplifier electronics DSV (Digital Smart Valve) integrated       • Individual process data monitor                    • Hardware extension for additional functions
                                                         directly in the valve to control a proportional valve.
                                                                                                                                  • Integrated oscilloscope                            • Software for application-optimized solutions
                                                         FEATURES                                                                 • Remote control functions                           • Flexible interface definition
                                                         • Amplifier or controller type  • 2 digital inputs and 1 output          • Fieldbus interface                                 • Electronics integrated in the valve
                                                         • Controller modes selectable:   • Can be parameterized using
                                                          pressure, position, speed    PASO software
                                                         • Valve set at the factory   • Optionally with fieldbus
                                                                                       (CANopen, Profibus DP)
                                                         • Control via solenoid current
                                                          with dither signal          • Protection class IP67
                                                         • Set values as voltage or
                                                          current


          MINIATURE AMPLIFIER PD2, PD3                   CHARACTERISTIC
                                                         Digital amplifier module for controlling a proportional valve. PD2 is
                                                         an electronic unit with cable connection. In the MPS version, it is
                                                         permanently mounted on a solenoid.

                                                         FEATURES
                                                         • Housing IP67               • Can be parameterized using
                                                                                       PASO software or display
                                                         • Solenoid current controlled  and buttons on the device
                                                         • Setpoint as voltage or     • Optionally with fieldbus
                                                          current                      (CANopen or J1939)
                                                         • Digital input              • Housing with cable connec-
                                                                                       tions or mounted on solenoid
