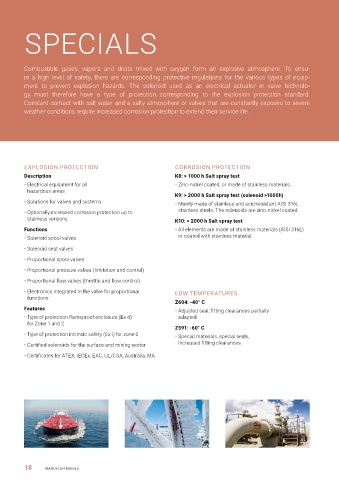

SPECIALS INDIVIDUAL

Combustible gases, vapors and dusts mixed with oxygen form an explosive atmosphere. To ensu- SOLUTIONS
re a high level of safety, there are corresponding protective regulations for the various types of equip-
ment to prevent explosion hazards. The solenoid used as an electrical actuator in valve technolo-
gy must therefore have a type of protection corresponding to the explosion protection standard.
Constant contact with salt water and a salty atmosphere or valves that are constantly exposed to severe Hydraulic systems are used to steer and move vehicles. The functions installed, such as lifting and swivel
weather conditions require increased corrosion protection to extend their service life. arms, supports and brakes, are also operated hydraulically. They move loads and hold them in the desired
position for long periods of time. Switching valves control directions of movement, seal lines tightly and limit
pressures and flow rates to manually set values.

CONTROL UNITS • Compact control units for tools and other machines

EXPLOSION PROTECTION CORROSION PROTECTION • Complex functional units
Description K8: > 1000 h Salt spray test • Safety-relevant functions
• Electrical equipment for all • Zinc-nickel coated, or made of stainless materials.
hazardous areas • Explosion-proof units for onshore and offshore applications
K9: > 2000 h Salt spray test (solenoid >1000h)
• Solutions for valves and systems • Mainly made of stainless and acid-resistant AISI 316L • Control units for large systems with a flow rate of up to
10,000 l/min and 420 bar
• Optionally increased corrosion protection up to stainless steels. The solenoids are zinc-nickel coated.
stainless versions K10: > 2000 h Salt spray test • Modular interlinking systems

Functions • All elements are made of stainless materials (AISI 316L)
• Solenoid spool valves or coated with stainless material.

• Solenoid seat valves
• Proportional spool valves SYSTEMS • The specialist in hydraulic system construction with over 30
• Proportional pressure valves (limitation and control) years of experience

• Proportional flow valves (throttle and flow control) • From engineering to commissioning, everything from a single
source
• Electronics integrated in the valve for proportional LOW TEMPERATURES
functions • Cost- and space-optimized series units for machine tools
Z604: -40° C
Features • Adjusted seal, fitting clearances partially • Energy-efficient standard units
• Type of protection flameproof enclosure (Ex d) adapted • Technically sophisticated systems for test facilities
for Zone 1 and 2
Z591: -60° C • Sophisticated electro-hydraulic functional units
• Type of protection intrinsic safety (Ex i) for zone 0 • Special materials, special seals, • Plant construction with complete installation and commissioning

• Certified solenoids for the surface and mining sector Increased fitting clearances in the hydropower sector
• Certificates for ATEX, IECEx, EAC, UL/CSA, Australia, MA

VALVES • Combination of several proven functions in one element
• Application and customer-specific solutions with the experience
of standard components
• Implementation of explosion and corrosion protection
requirements
• Special valve actuation
• Inclusion of special materials, surface treatments and machining
processes
• Special functions
