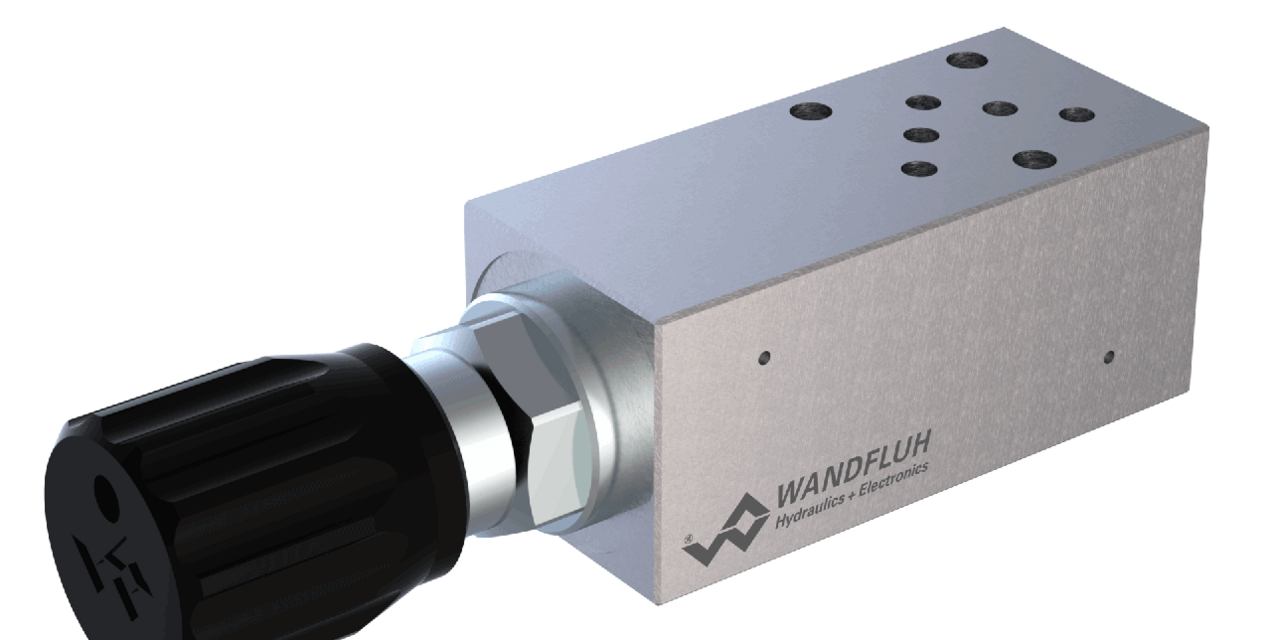

2-way flow control valve sandwich construction
Description
Sandwich type 2-way flow control valve. Fitted with 2-way flow control cartridge M18x1,5 in accordance with ISO 7789. Type of adjustment available: „S“ = screw adjustment, „D“ = knob adjustment, (see data sheet no. 2.5-510). For the sandwich plates in A, B and AB, a bypass non-return valve for reversed free flow is installed.
Application
Sandwich type flow control valves are used where the supply volume flow has to be kept constant even when the load fluctuates. Depending on the application, a distinction is made between restricting the forward flow or the return flow. These sandwich valves are particularly suitable for machine tools and also all types of handling operations. The Mini-3 flow control valves are used where hydraulic systems have to be both light and compact.
Key facts
2-way flow control valve
Fixed orifice, adjustable pressure compensator
Sandwich construction
- Qmax = 10 l/min
- QN max = 8 l/min
- pmax = 315 bar
