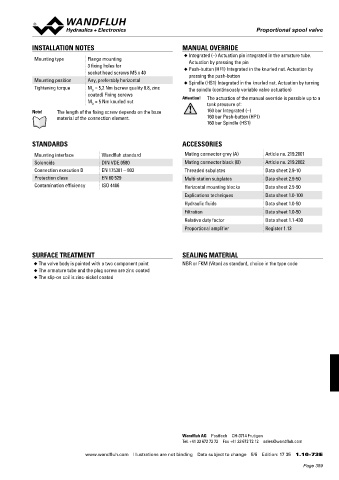

Proportional spool valve
Proportional spool valve

INSTALLATION NOTES MANUAL OVERRIDE
◆ Integrated (–) Actuation pin integrated in the armature tube.
Mounting type Flange mounting Actuation by pressing the pin
3 fixing holes for Push-button (HF1) Integrated in the knurled nut. Actuation by
socket head screws M5 x 40 ◆ pressing the push-button
Mounting position Any, preferably horizontal ◆ Spindle (HS1) Integrated in the knurled nut. Actuation by turning
Tightening torque M = 5,2 Nm (screw quality 8.8, zinc the spindle (continuously variable valve actuation)
D
coated) Fixing screws The actuation of the manual override is possible up to a
M = 5 Nm knurled nut Attention!
D tank pressure of:
Note! The length of the fixing screw depends on the base 160 bar Integrated (–)
material of the connection element. 160 bar Push-button (HF1)
160 bar Spindle (HS1)

STANDARDS ACCESSORIES
Mounting interface Wandfluh standard Mating connector grey (A) Article no. 219.2001
Solenoids DIN VDE 0580 Mating connector black (B) Article no. 219.2002
Connection execution D EN 175301 – 803 Threaded subplates Data sheet 2.9-10
Protection class EN 60 529 Multi-station subplates Data sheet 2.9-50
Contamination efficiency ISO 4406 Horizontal mounting blocks Data sheet 2.9-90
Explications techniques Data sheet 1.0-100
Hydraulic fluids Data sheet 1.0-50
Filtration Data sheet 1.0-50
Relative duty factor Data sheet 1.1-430
Proportional amplifier Register 1.13

SURFACE TREATMENT SEALING MATERIAL
◆ The valve body is painted with a two component paint NBR or FKM (Viton) as standard, choice in the type code
◆ The armature tube and the plug screw are zinc coated
◆ The slip-on coil is zinc-nickel coated
