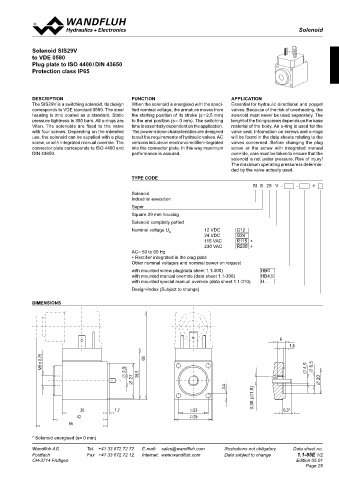

Page 25 - Softbound_Edition_19_en
P. 25

Solenoids                                                                                               Solenoids
                                                                                                          Solenoid

 CHARACTERISTICS  DC  AC  Solenoid SIS29V
 Static pressure tightness   160 bar    Totale stroke  (mm)    2,5  2,5  to VDE 0580
             (seal diameter of valve max. 20 mm)  Working stroke    (mm)    1  1  Plug plate to ISO 4400 / DIN 43650
             With seal diameter of valve = 27 mm:  Nominal power    (W)  15
 static pressure tightness = 100 bar           (VA)             17  Protection class IP65
 Coil winding insulation class   H  Armature weight   (kg)  0,020    0,020
 Connection / Power supply   Over device plug connection to    Solenoid weight    (kg)  0,21  0,21
             ISO 4400 / DIN 43650, (2P+E),    Voltage range    (VDC)    10-250
 other connections on request           (VAC)             24-250
 Protection class to EN 60 529  IP65  DESCRIPTION  fuNCTION                       APPLICATION
 Relative duty factor       100 %  The SIS29V is a switching solenoid. Its design   When the solenoid is energised with the speci-  Essential for hydraulic directional and poppet
 Reference temperature    50 °C  corresponds to VDE standard 0580. The steel   fied nominal voltage, the armature moves from   valves. Because of the risk of overheating, the
 Seal  Viton, other on request  housing is zinc coated as a standard. Static   the starting position of its stroke (s = 2,5 mm)   solenoid must never be used separately. The
 Fluid             Mineral oil, other fluid on request  pressure tightness is 350 bars. All o-rings are   to the end position (s = 0 mm). The switching   lenght of the fixing screws depends on the base
 Switching cycles       15 000/h     12VDC   24VDC   115VAC  230VAC  Viton. The  solenoids  are  fixed  to  the  valve   time is essentially dependent on the application.   material of the body. An o-ring is used for the
 Mounting screws       4 x M3 (Quality 8.8)  Nominal resistance (Ω)   10   42   650   2’650  with four screws. Depending on the intended   The power-stroke characteristics are designed   valve seal. Information on screws and o-rings
 Housing          Zinc coated steel housing, other    Number of windings (-)   740   1’490   5’800   11’000  use, the solenoid can be supplied with a plug   to suit the requirements of hydraulic valves. AC   will be found in the data sheets relating to the
 surface treatments on request.  Inductivity (mH)   8   35   -   -    screw, or with integrated manual override. The   versions include an electronic rectifier integrated   valves concerned. Before changing the plug
            connector plate corresponds to ISO 4400 and   into the connector plate. In this way maximum   screw  or the screw with  integrated manual
            DIN 43650.                         performance is assured.            override, care must be taken to ensure that the
                                                                                  solenoid is not under pressure. Risk of injury!
                                                                                  The maximum operating pressure is determin-
                                                                                  ded by the valve actually used.
                                               TyPE CODE
                                                                                          SI  S  29  V  -   -   #
                                               Solenoid
                                               Industrial execution
                                               Super
 PERfORmANCE  ACCESSOIRES
                                               Square 29 mm housing
 F = f (s)   Force-stroke characteristics  Plug HB0   ∗ Article No. 239.2033  Solenoid completly potted
 F [N]  Plug with integrated manual override HB4,5
 70  K0055  ∗ Article No. 253.8000             Nominal voltage U         12 VDC     G12
                                                            N
    ∗ acc. data sheet 1.1-300                                            24 VDC     G24
                                                                         115 VAC    R115  ∗
 60  Special manual override   see data sheet 1.1-310                    230 VAC    R230  ∗
                                               AC= 50 to 60 Hz
 Plug grey   Article No. 219.2001              ∗ Rectifier integrated in the plug plate
 50  Plug black   Article No. 219.2002         Other nominal voltages and nominal power on request
                                               with mounted screw plug(data sheet 1.1-300)   HB0
                                               with mounted manual override (data sheet 1.1-300)   HB4,5
 40                                            with mounted special manual override (data sheet 1.1-310)   H...
                                               Design-Index (Subject to change)
 30
 1          DIMENSIONS
 20
 2
 10

                                                                                                   6
 0                                                                                                     1,6
 0  0,5  1,0  1,5  2,0  2,5  s [mm]
                M8 x 0,75                           68
 1: U = 100 % U N   Reference temperature = 20 °C (15W)  ∅ 2,9                                               ∅ 4,5  ∅ 6,5
 2: U = 90 % U     Reference temperature = 50 °C   39,5
 N                                              ∅ 27
 Solenoid in operating temperature (9W)                                                                          ∅ 20
                                                                                3,4
 The values refer to U  = 24VDC.
 N
 With other nominal voltages deviations can occur.                                         3,35 (∅1,5)
 For curve 2 the solenoid has been mounted on a body  30 x 38.
                             35          1,7                         23                              6,3*
                            42                                       29
                         55
 Technical explanation see data sheet 1.1-400
            * Solenoid energised (s= 0 mm)
