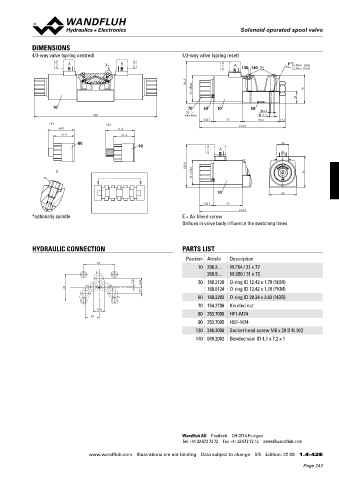

Solenoid operated spool valve
Solenoid operated spool valve
DIMENSIONS
4/3-way valve (spring centred) 4/2-way valve (spring reset)
A X B A 130 140 E MD= 10.5Nm (8.8)
13.5Nm (10.9)
104.5 64
W = 70
29
10 70 60 10 50
6.5
307 MD=5Nm 11.5
35 72 93.2 14.1
HF1 HS1 214.3
64.9 71.4
51.4 51.4
80 30
90
A
105.8
X 60 76
* M =
10 68
35 72
214.3
*optionally spindle E = Air bleed screw
Orifices in valve body influence the switching times
HYDRAULIC CONNECTION PARTS LIST
Position Article Description
54
10 206.3… W.E64 / 31 x 72
P 260.9… M.S60 / 31 x 72
1.5 50 160.2120 O-ring ID 12,42 x 1,78 (NBR)
A B 16.8
46 160.8124 O-ring ID 12,42 x 1,78 (FKM)
9.7
T To 60 160.2282 O-ring ID 28.24 x 2.62 (NBR)
70 154.2706 Knurled nut
20.8
80 253.7006 HF1-M24
24
90 253.7005 HS1-M24
130 246.3006 Socket head screw M6 x 20 DIN 912
140 049.2062 Bonded seal ID 4,1 x 7,2 x 1
Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 sales@wandfluh.com
www.wandfluh.com Illustrations are not binding Data subject to change 5/5 Edition: 22 09 1.4-42 E
