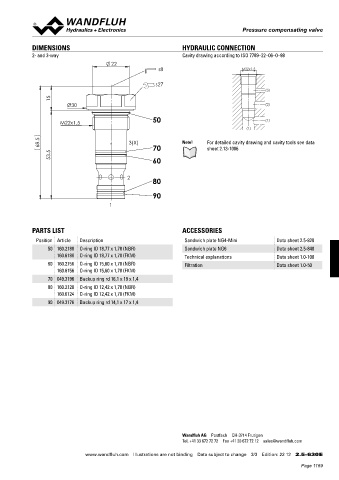

Pressure compensator valve
Pressure compensating valve
DIMENSIONS HYDRAULIC CONNECTION
2- and 3-way Cavity drawing according to ISO 7789–22–06–0–98
22
s8 M22x1.5
s27
(3)
15
Ø30 (2)
50 (1)
M22x1.5
(1)
68.5 3(X) 70 Note! For detailed cavity drawing and cavity tools see data
sheet 2.13-1006
53.5 60
2
80
90
1
PARTS LIST ACCESSORIES
Position Article Description Sandwich plate NG4-Mini Data sheet 2.5-820
50 160.2188 O-ring ID 18,77 x 1,78 (NBR) Sandwich plate NG6 Data sheet 2.5-840
160.6188 O-ring ID 18,77 x 1,78 (FKM) Technical explanations Data sheet 1.0-100
60 160.2156 O-ring ID 15,60 x 1,78 (NBR) Filtration Data sheet 1.0-50
160.6156 O-ring ID 15,60 x 1,78 (FKM)
70 049.3196 Backup ring rd 16,1 x 19 x 1,4
80 160.2120 O-ring ID 12,42 x 1,78 (NBR)
160.6124 O-ring ID 12,42 x 1,78 (FKM)
90 049.3176 Backup ring rd 14,1 x 17 x 1,4
Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 sales@wandfluh.com
www.wandfluh.com Illustrations are not binding Data subject to change 3/3 Edition: 22 12 2.5-630 E
