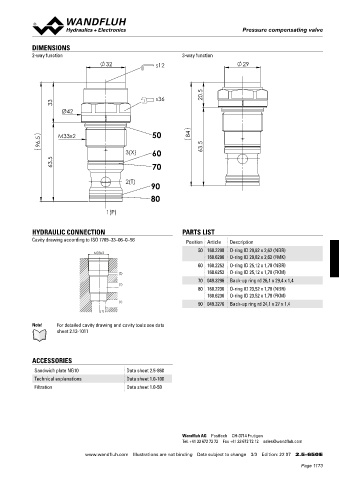

Pressure compensator valve
Pressure compensating valve

DIMENSIONS
2-way function 3-way function
32 s12 29

s36 20.5
33
Ø42

96.5 M33x2 50 84 63.5
3(X) 60
63.5 70

2(T)
90

80

1(P)

HYDRAULIC CONNECTION PARTS LIST
Cavity drawing according to ISO 7789–33–06–0–98 Position Article Description
50 160.2298 O-ring ID 29,82 x 2,62 (NBR)
M33x2
160.6296 O-ring ID 29,82 x 2,62 (FMK)
60 160.2252 O-ring ID 25,12 x 1,78 (NBR)
(3) 160.6252 O-ring ID 25,12 x 1,78 (FKM)
70 049.3296 Back-up ring rd 26,1 x 29,4 x 1,4
(2)
80 160.2236 O-ring ID 23,52 x 1,78 (NBR)
160.6236 O-ring ID 23,52 x 1,78 (FKM)
(1)
90 049.3276 Back-up ring rd 24,1 x 27 x 1,4
(1)

Note! For detailed cavity drawing and cavity tools see data
sheet 2.13-1011

ACCESSORIES
Sandwich plate NG10 Data sheet 2.5-860
Technical explanations Data sheet 1.0-100
Filtration Data sheet 1.0-50
