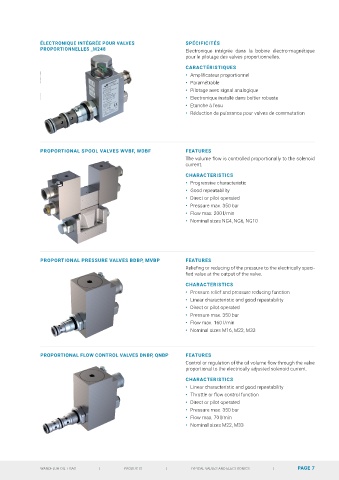

ÉLECTRONIQUE INTÉGRÉE POUR VALVES SPÉCIFICITÉS
PROPORTIONNELLES _M248 Electronique intégrée dans la bobine électro-magnétique
pour le pilotage des valves proportionnelles.
CARACTÉRISTIQUES
• Amplificateur proportionnel
• Paramétrable
• Pilotage avec signal analogique
• Electronique installé dans boîtier robuste
• Etanche à l’eau
• Réduction de puissance pour valves de commutation
PROPORTIONAL SPOOL VALVES WVBF, WDBF FEATURES
The volume flow is controlled proportionally to the solenoid
current.
CHARACTERISTICS
• Progressive characteristic
• Good repeatability
• Direct or pilot operated
• Pressure max. 350 bar
• Flow max. 200 l/min
• Nominal sizes NG4, NG6, NG10
PROPORTIONAL PRESSURE VALVES BDBP, MVBP FEATURES
Reliefing or reducing of the pressure to the electrically speci-
fied value at the output of the valve.
CHARACTERISTICS
• Pressure relief and pressure reducing function
• Linear characteristic and good repeatability
• Direct or pilot operated
• Pressure max. 350 bar
• Flow max. 160 l/min
• Nominal sizes M16, M22, M33
PROPORTIONAL FLOW CONTROL VALVES DNBP, QNBP FEATURES
Control or regulation of the oil volume flow through the valve
proportional to the electrically adjusted solenoid current.
CHARACTERISTICS
• Linear characteristic and good repeatability
• Throttle or flow control function
• Direct or pilot operated
• Pressure max. 350 bar
• Flow max. 70 l/min
• Nominal sizes M22, M33
