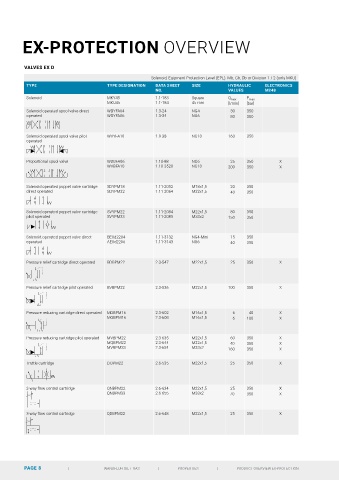

EX-PROTECTION OVERVIEW
VALVES EX D VALVES EX IA
Solenoid, Eqipment Protection Level (EPL). Mb, Gb, Db or Division 1 / 2 (only MKU) Solenoid, Equipment Protection Level (EPL): Ma, Ga
TYPE TYPE DESIGNATION DATA SHEET SIZE HYDRAULIC ELECTRONICS TYPE TYPE DESIGNATION DATA SHEET SIZE HYDRAULIC ELECTRONICS
NO. VALUES M248 NO. VALUES M248
Solenoid MKY45 1.1-183 Square Q max P max Solenoid MKZ45 1.1-185 Square 45mm Qmax pmax
MKU45 1.1-184 45 mm [l/min] [bar] MDZ45 [l/min] [bar]
Solenoid operated spool valve direct WDYFA04 1.3-24 NG4 30 350 Solenoid operated spool valve direct WDZFA04 1.3-28 NG4 10 350
operated WDYFA06 1.3-34 NG6 80 350 operated AEXi4x6 1.3-40 NG6 20 300
WDZFA06-Z546 1.3-42 NG6 10 350
Solenoid operated spool valve pilot WVYFA10 1.9-38 NG10 160 350
operated CERTIFICATIONS
FIELDS OF APPLICATIONS
Proportional spool valve WDBFA06 1.10-88 NG6 25 350 X
WVBFA10 1.10-3520 NG10 200 350 X Surface Mining Standard M224 M238 M248
-25°C up to… -40°C to -60°C to… Electronics
Solenoid operated poppet valve cartridge SDYPM18 1.11-2052 M18x1,5 20 350
direct operated SDYPM22 1.11-2064 M22x1,5 40 350
ATEX Ex d / Ex ia Ex d / Ex ia Ex d / Ex ia Ex d Ex d Ex d
Solenoid operated poppet valve cartridge SVYPM22 1.11-2084 M22x1,5 80 350
pilot operated SVYPM33 1.11-2085 M33x2 150 350
IECEx Ex d / Ex ia Ex d / Ex ia Ex d / Ex ia Ex d Ex d Ex d
Solenoid operated poppet valve direct BEXd2204 1.11-3132 NG4-Mini 15 350
operated AEXd2206 1.11-3143 NG6 40 350
EAC Ex d Ex d Ex d Ex d Ex d Ex d
Pressure relief cartridge direct operated BDBPM22 2.3-547 M22x1,5 25 350 X
Australia Ex d Ex d Ex d Ex d
Pressure relief cartridge pilot operated BVBPM22 2.3-536 M22x1,5 100 350 X
MA Ex d Ex d Ex d
Pressure reducing cartridge direct operated MDBPM16 2.3-602 M16x1,5 6 40 X
MGBPM16 2.3-608 M16x1,5 6 100 X
UL / CSA Ex d Ex d
Pressure reducing cartridge pilot operated MVBPM22 2.3-635 M22x1,5 60 350 X
MQBPM22 2.3-644 M22x1,5 40 350 X
MVBPM33 2.3-654 M33x2 160 350 X
Trottle cartridge D.BPM22 2.6-535 M22x1,5 25 350 X
2-way flow control cartridge QNBPM22 2.6-634 M22x1,5 25 350 X
QNBPM33 2.6-655 M33x2 70 350 X
3-way flow control cartridge QDBPM22 2.6-648 M22x1,5 25 350 X
PAGE 8 | WANDFLUH OIL + GAS | PROPERTIES | PRODUCT OVERVIEW EX-PROTECTION
