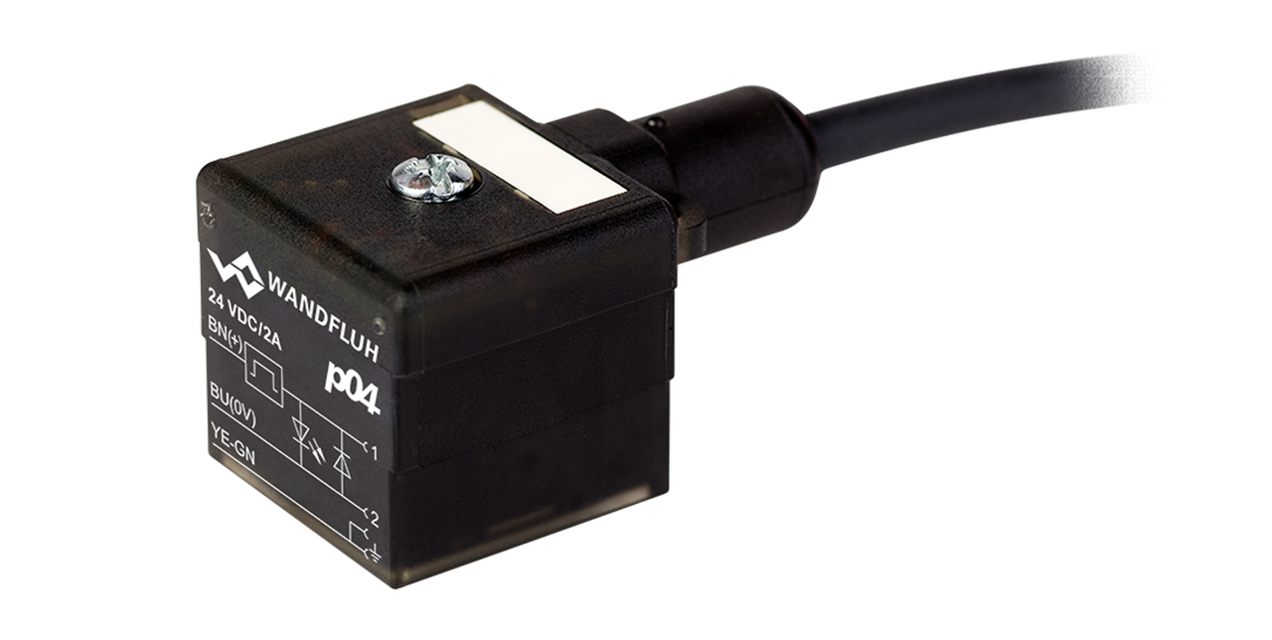

Power reduction plug
Description
Power reduction plug for direct mounting on the valve. Contact arrangement in accordance with DIN EN 175301-803, construction form A (ISO 4400) for DC switching solenoids. The protection class of the power reduction plug is IP 67, mounted according to EN 60529. The connection cable is injection moulded onto the plug.
Application
By the IP 67 execution and the wide temperature range, the power reduction plug is suitable both for industrial and mobile applications. The plug can be rotated by 180°. It protects continuously energised solenoids (e.g. used as a safety function) from overtemperature and premature ageing. By overenergisation, a valve which is deenergised in normal operation (eventually seized spool), can be switched straight through powerfully.
Key facts
Power reduction plug P04
- After switching on, current consumption is reduced to 50 %
- Direct mounting on the valve
- Protection class 67
- For switching solenoids with DIN plug construction form A
