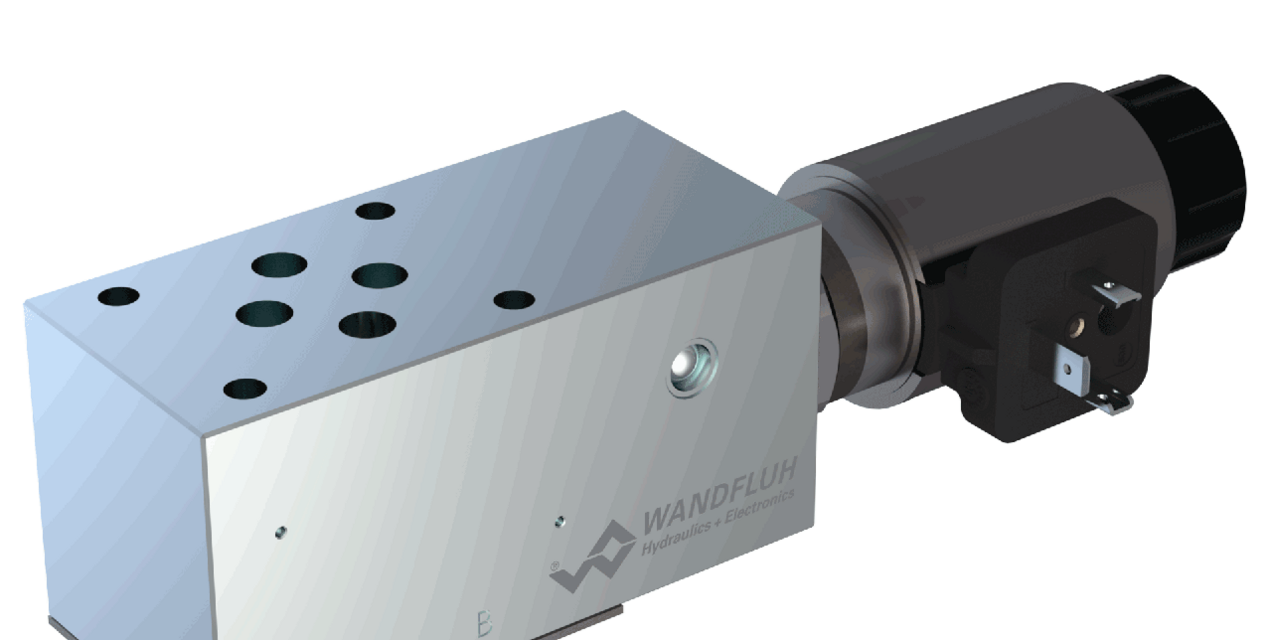

Proportional throttle valve flange and sandwich construction, NG6
Description
Directly operated proportional throttle valve in sandwich construction. Screw-in cartridge M22x1,5 in accordance with ISO 7789. In sandwich types for A and B line, a by-pass check valve for reversed free flow is in-corporated. Three flow ranges are available. The volume flow is adjusted by a proportional solenoid (VDE standard 0580). The flange body is painted, the sandwich plates are phosphatised.
Application
Proportional throttle valves are suitable for precise feed control systems. An extremely sensitive opening and closing response allows a smooth control of movements in stationary or mobile installations, e.g. machine tools, public vehicles.
Key facts
Proportional throttle valve
Flange and sandwich construction
- Direct operated, not pressure compensated
- pmax = 350 bar
