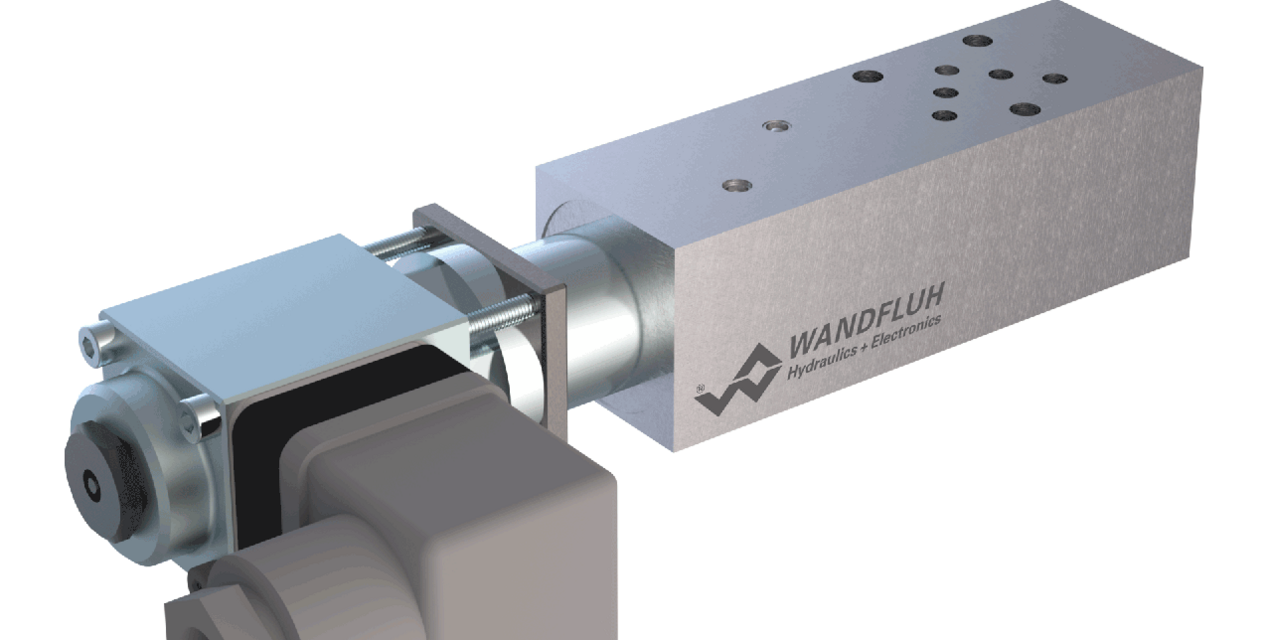

Proportional pressure reducing valve flange and sandwich construction, NG3 mini
Description
Pilot operated proportional pressure reducing valves NG3-Mini. Flange and sandwich con-struction according to Wandfluh standard with 4 ports. Incorporated are proportional pressure reducing cartridges size M18x1,5 according to Wandfluh standard. Adjustment by Wandfluh proportional solenoids (Standard VDE 0580). The flange body and the sandwich plates made of steel are painted or zinc-nickel coated.
Application
The valves have their applications in hydraulic systems in which the pressure in a consumer has to remain constant at the adjusted value independently of pressure fluctuations on the supply side. The facility for remote control and signal processing from process control systems enable economical solutions to problems with repeatable sequences. NG3-Mini valves are used where both, reduced dimensions and weight are important.
Key facts
Proportional pressure reducing valve
Flange and sandwich construction
- Pilot operated
- Qmax = 8 l/min
- pmax = 315 bar
