Proportional Mobile Valves
Quality products for demanding applications

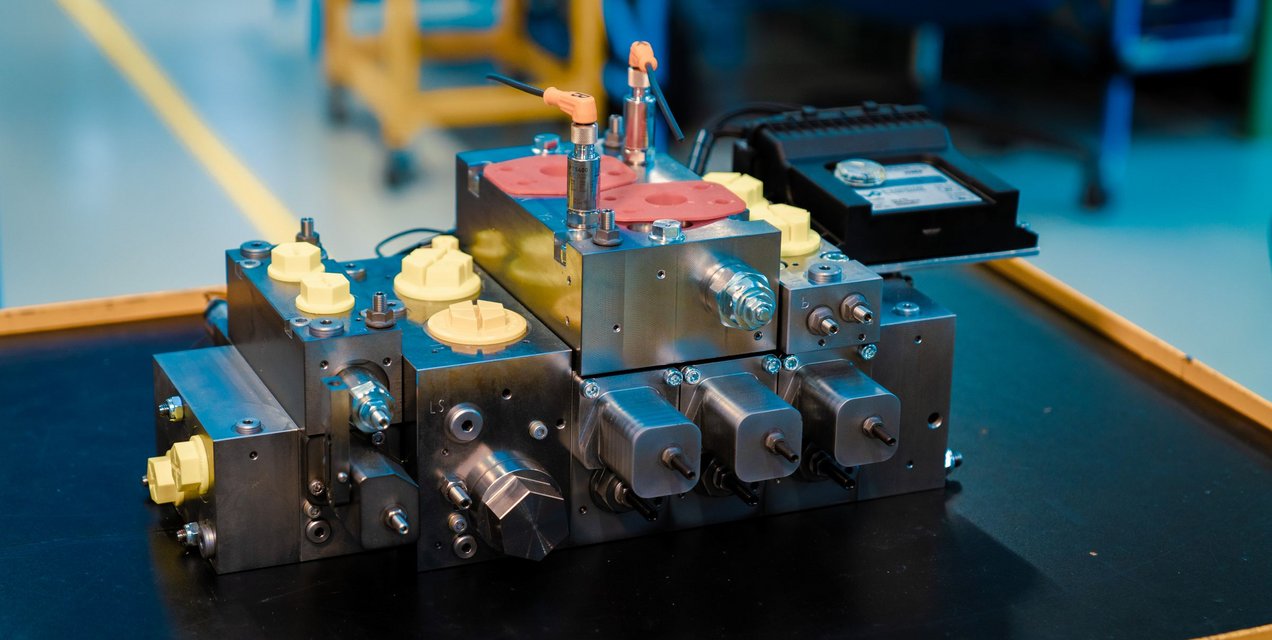

The Proportional Mobile Valves (PMV) range offers a flexible, modularly adaptable hydraulic concept. The integrated pressure compensator enables precise, load-independent control.
Modular & flexible

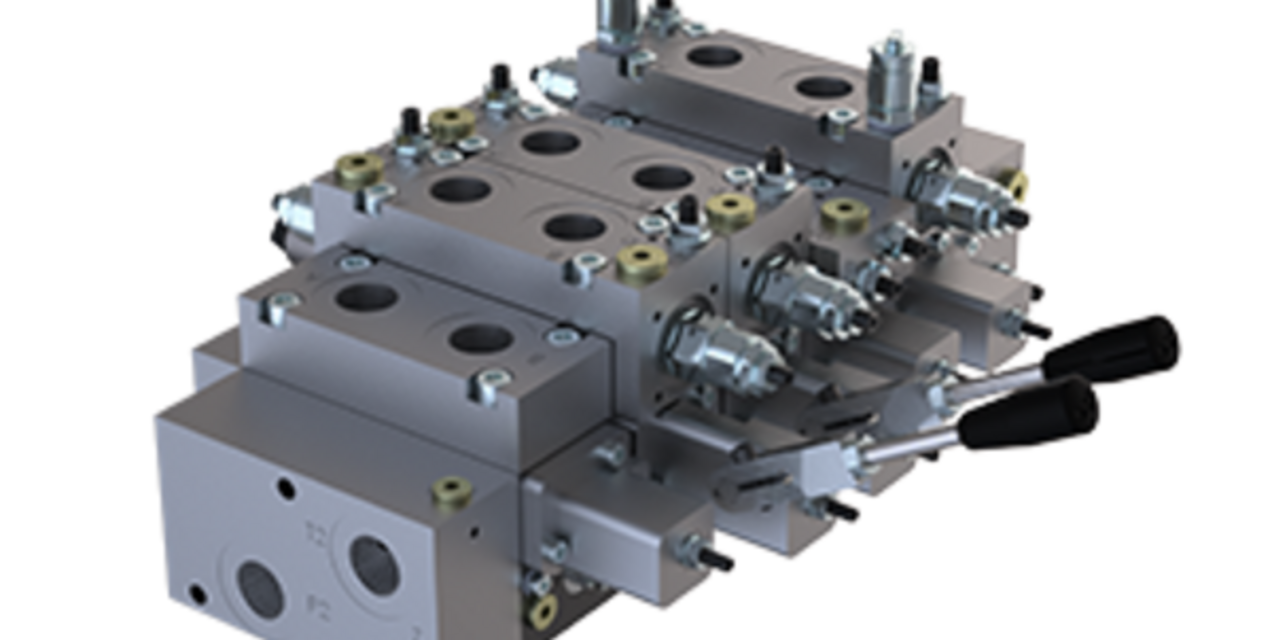

PMV stands for flexibility. Thanks to their modular design, PMV units are suitable for a wide range of applications. They consist of proportional spool valves that precisely control the direction of movement and speed of cylinders or hydraulic motors. With the integrated pressure compensator, functions can be controlled steplessly and load pressure-compensated proportionally or manually via hand levers. Volume flows and load pressures can be individually adjusted.
Properties
- Modular design
- Individually adaptable
- Volume flows and load pressures can be individually adapted to the downstream consumers
- Extensive modular system with a large number of variants and combination options
- Compact and lightweight construction
- Robust and durable design for pressures up to 420 bar
- High energy efficiency thanks to low delta p
- Load-sensing signal amplifier
- Anti-saturation module
- Load-independent flow control
- The load-sensing pressure relief valves for connections A and B reduce energy loss

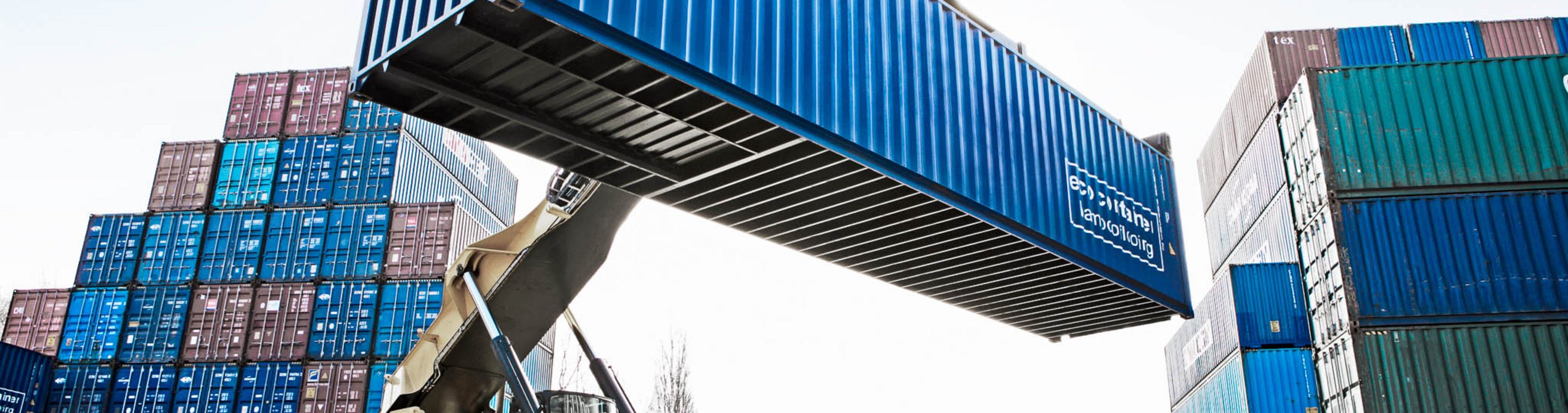

Areas of application
High power density and reliability are essential for use in the mobile sector, where heavy-duty work must be carried out precisely and efficiently. The PMV range offers flexible hydraulic solutions for almost all mobile applications. The units are available in zinc-nickel coating and offer high corrosion resistance.
PMVs are used where compact design and precise control are required. Typical applications include:
- Workboats
- Fishing equipment
- loading cranes
- telescopic loaders
- Aerial work platforms
- Municipal and construction machinery
- Drilling equipment
- Agricultural & forestry machinery
- Offshore applications
- Underground mining
The proportional valves can be adapted to applications in a modular fashion and controlled directly by hydraulic joysticks or manual lever controls.
Features
- Proportional function as standard
- Sizes NG10 / 16 / 22 / 32
- 1-1,000 l/m Flow rate
- 420 bar
- Pressure compensated
- Functions freely configurable
- Modular design for flexible device assembly
- The complete assembly is carried out by our PMV build partners

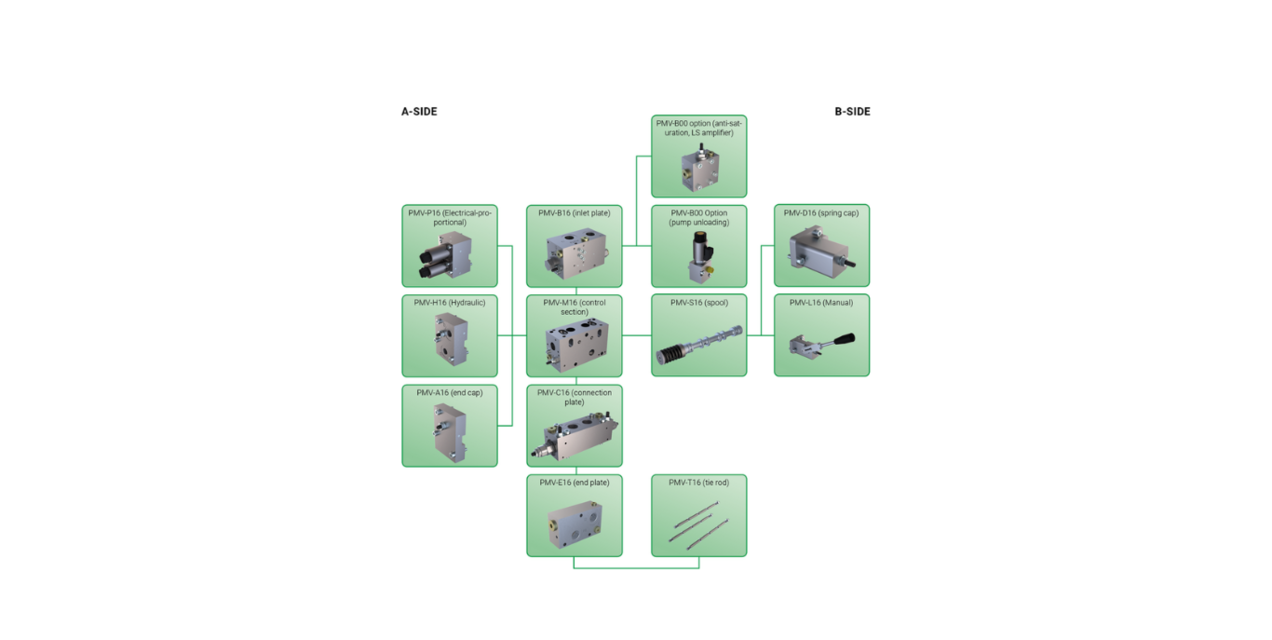

PMV concept
The PMV range allows individual modules to be put together, which are available as pre-assembled units with their own type code. Modifications can also be carried out easily in the field. The modular design means that special solutions can be created flexibly. For example, integrated lowering brake valves or controlled non-return valves can be integrated into the sub-base.
