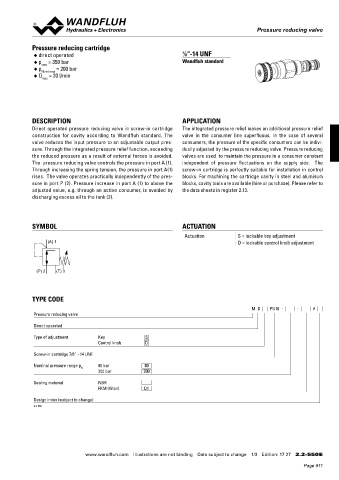

Pressure reducing valve
Pressure reducing valve

Pressure reducing cartridge
◆ direct operated 7 ⁄8 “-14 UNF
◆ p = 350 bar Wandfluh standard
max
◆ p N red max = 200 bar
◆ Q = 20 l/min
max

DESCRIPTION APPLICATION
Direct operated pressure reducing valve in screw-in cartridge The integrated pressure relief makes an additional pressure relief
construction for cavity according to Wandfluh standard. The valve in the consumer line superfluous. In the case of several
valve reduces the input pressure to an adjustable output pres- consumers, the pressure of the specific consumers can be indivi-
sure. Through the integrated pressure relief function, exceeding dually adjusted by the pressure reducing valve. Pressure reducing
the reduced pressure as a result of external forces is avoided. valves are used to maintain the pressure in a consumer constant
The pressure reducing valve controls the pressure in port A (1). independent of pressure fluctuations on the supply side. The
Through increasing the spring tension, the pressure in port A(1) screw-in cartridge is perfectly suitable for installation in control
rises. The valve operates practically independently of the pres- blocks. For machining the cartridge cavity in steel and aluminum
sure in port P (2). Pressure increase in port A (1) to above the blocks, cavity tools are available (hire or purchase). Please refer to
adjusted value, e.g. through an active consumer, is avoided by the data sheets in register 2.13.

discharging excess oil to the tank (3).

SYMBOL ACTUATION
Actuation S = lockable key adjustment
(A) 1 D = lockable control knob adjustment

(P) 2 (T) 3

TYPE CODE
M D PU10 - - #
Pressure reducing valve

Direct operated
Type of adjustment Key S
Control knob D

Screw-in cartridge 7/8“ - 14 UNF

Nominal pressure range p N 80 bar 80
200 bar 200
Sealing material NBR
FKM (Viton) D1

Design index (subject to change)
2.2-550

www.wandfluh.com Illustrations are not binding Data subject to change 1/3 Edition: 17 27 2.2-550 E
