Amplifier and controller electronics
                                                                              Amplifier / controller electronics

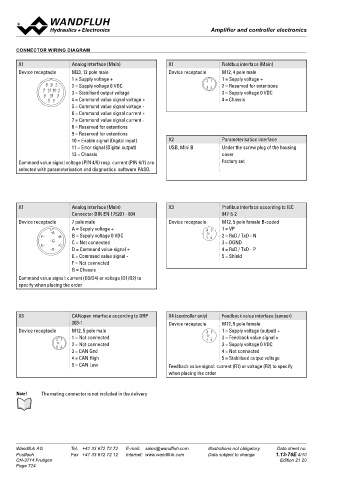

       CONNECTOR WIRING DIAGRAM

        X1                Analog interface (Main)           X1                 Fieldbus interface (Main)
        Device receptacle  M23, 12 pole male                Device receptacle  M12, 4 pole male
                          1 = Supply voltage +                            2  1  1 = Supply voltage +
                 8 9  1   2 = Supply voltage 0 VDC                             2 = Reserved for extentions
                7 12 10 2  3 = Stabilised output voltage                  3 4  3 = Supply voltage 0 VDC
                6  11 3
                  5  4    4 = Command value signal voltage +                   4 = Chassis
                          5 = Command value signal voltage -
                          6 = Command value signal current +
                          7 = Command value signal current -
                          8 = Reserved for extentions
                          9 = Reserved for extentions
                          10 = Enable signal (Digital input)  X2               Parameterisation interface
                          11 = Error signal (Digital output)  USB, Mini B      Under the screw plug of the housing
                          12 = Chassis                                         cover
        Command value signal voltage (PIN 4/5) resp. current (PIN 6/7) are     Factory set
        selected with parameterisation and diagnostics  software PASO.






        X1                Analog interface (Main)           X3                 Profibus interface according to IEC
                          Connector DIN EN 175201 - 804                        947-5-2
        Device receptacle  7 pole male                      Device receptacle  M12, 5 pole female B-coded
                          A = Supply voltage +                           2 3   1 = VP
                   A                                                      5
               F      B   B = Supply voltage 0 VDC                       1 4   2 = RxD / TxD - N
                   G      C = Not connected                                    3 = DGND
               E      C
                   D      D = Command value signal +                           4 = RxD / TxD - P
                          E = Command value signal -                           5 = Shield
                          F = Not connected
                          G = Chassis
        Command value signal: current (D3/D4) or voltage (D1/D2) to
        specify when placing the order




        X3                CANopen interface according to DRP   X4 (controller only)  Feedback value interface (sensor)
                          303-1                             Device receptacle  M12, 5 pole female
        Device receptacle  M12, 5 pole male                              2 3   1 = Supply voltage (output) +
                          1 = Not connected                               5    2 = Feedback value signal +
                     2 1                                                 1 4
                     5    2 = Not connected                                    3 = Supply voltage 0 VDC
                     3 4
                          3 = CAN Gnd                                          4 = Not connected
                          4 = CAN High                                         5 = Stabilised output voltage
                          5 = CAN Low                       Feedback value signal: current (R1) or voltage (R2) to specify
                                                            when placing the order



       Note!    The mating connector is not included in the delivery










       Wandfluh AG        Tel.  +41 33 672 72 72   E-mail:  sales@wandfluh.com   Illustrations not obligatory   Data sheet no.
       Postfach           Fax  +41 33 672 72 12   Internet:  www.wandfluh.com   Data subject to change   1.13-76E 4/10
       CH-3714 Frutigen                                                                            Edition 21 20
