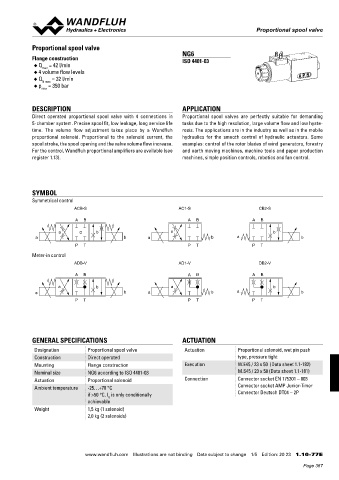

Proportional spool valve
Proportional spool valve

Proportional spool valve
NG6
Flange construction ISO 4401-03
◆ Q = 42 l/min
max
◆ 4 volume flow levels
◆ Q N max = 32 l/min
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Direct operated proportional spool valve with 4 connections in Proportional spool valves are perfectly suitable for demanding
5-chamber system. Precise spool fit, low leakage, long service life tasks due to the high resolution, large volume flow and low hyste-
time. The volume flow adjustment takes place by a Wandfluh resis. The applications are in the industry as well as in the mobile
proportional solenoid. Proportional to the solenoid current, the hydraulics for the smooth control of hydraulic actuators. Some
spool stroke, the spool opening and the valve volume flow increase. examples: control of the rotor blades of wind generators, forestry
For the control, Wandfluh proportional amplifiers are available (see and earth moving machines, machine tools and paper production

register 1.13). machines, simple position controls, robotics and fan control.

SYMBOL
Symmetrical control
ACB-S AC1-S CB2-S

A B A B A B
a 0 b a b
a b a b a b
P T P T P T

Meter-in control
ADB-V AD1-V DB2-V

A B A B A B
a b a b
a b a b a b
P T P T P T

GENERAL SPECIFICATIONS ACTUATION
Designation Proportional spool valve Actuation Proportional solenoid, wet pin push
Construction Direct operated type, pressure tight
Mounting Flange construction Execution W.E45 / 23 x 50 (Data sheet 1.1-182)
Nominal size NG6 according to ISO 4401-03 M.S45 / 23 x 50 (Data sheet 1.1-181)
Actuation Proportional solenoid Connection Connector socket EN 175301 – 803
Ambient temperature -25…+70 °C Connector socket AMP Junior-Timer
if >50 °C, I is only conditionally Connector Deutsch DT04 – 2P
G
achievable
Weight 1,5 kg (1 solenoid)
2,0 kg (2 solenoids)

www.wandfluh.com Illustrations are not binding Data subject to change 1/5 Edition: 20 23 1.10-77 E
