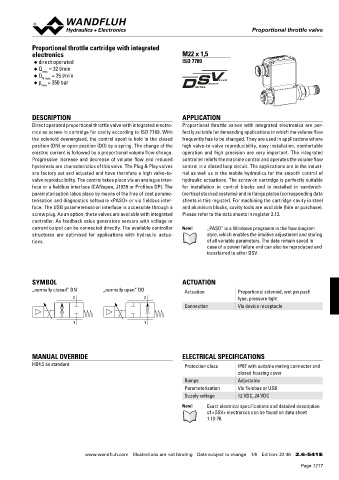

Page 1217 - Softbound_Edition_19_en

Proportional throttle valve
Proportional throttle valve

Proportional throttle cartridge with integrated
electronics M22 x 1,5
◆ direct operated ISO 7789
◆ Q = 32 l/min
max
◆ Q N max = 25 l/min
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Direct operated proportional throttle valve with integrated electro- Proportional throttle valves with integrated electronics are per-
nics as screw-in cartridge for cavity according to ISO 7789. With fectly suitable for demanding applications in which the volume flow
the solenoid deenergised, the control spool is held in the closed frequently has to be changed. They are used in applications where
position (DN) or open position (DO) by a spring. The change of the high valve-to-valve reproducibility, easy installation, comfortable
electric current is followed by a proportional volume flow change. operation and high precision are very important. The integrated
Progressive increase and decrease of volume flow and reduced controller reliefs the machine control and operates the volume flow
hysteresis are characteristics of this valve. The Plug & Play valves control in a closed loop circuit. The applications are in the indust-
are factory set and adjusted and have therefore a high valve-to- rial as well as in the mobile hydraulics for the smooth control of
valve reproducibility. The control takes place via an analogue inter- hydraulic actuations. The screw-in cartridge is perfectly suitable
face or a fieldbus interface (CANopen, J1939 or Profibus DP). The for installation in control blocks and is installed in sandwich-
parameterisation takes place by means of the free of cost parame- (vertical stacked systems) and in flange plates (corresponding data
terisation and diagnostics software «PASO» or via fieldbus inter- sheets in this register). For machining the cartridge cavity in steel
face. The USB parameterisation interface is accessible through a and aluminum blocks, cavity tools are available (hire or purchase).
screw plug. As an option, these valves are available with integrated Please refer to the data sheets in register 2.13.
controller. As feedback value generators sensors with voltage or
current output can be connected directly. The available controller Note! „PASO” is a Windows programm in the flow diagram
structures are optimised for applications with hydraulic actua- style, which enables the intuitive adjustment and storing
tions. of all variable parameters. The data remain saved in
case of a power failure and can also be reproduced and
transferred to other DSV.

SYMBOL ACTUATION
„normally closed” DN „normally open” DO Actuation Proportional solenoid, wet pin push
2 2 type, pressure tight
Connection Via device receptacle

1 1

MANUAL OVERRIDE ELECTRICAL SPECIFICATIONS
HB4,5 as standard Protection class IP67 with suitable mating connector and
closed housing cover
Ramps Adjustable
Parameterisation Via fieldbus or USB
Supply voltage 12 VDC, 24 VDC
Note! Exact electrical specifications and detailed description
of «DSV» electronics can be found on data sheet
1.13-76.

www.wandfluh.com Illustrations are not binding Data subject to change 1/6 Edition: 22 46 2.6-541 E
