2-way flow control valve flange and sandwich construction QZ_A10

Flow control valves, pressure compensation valves , fine feed / fast approach units NG10

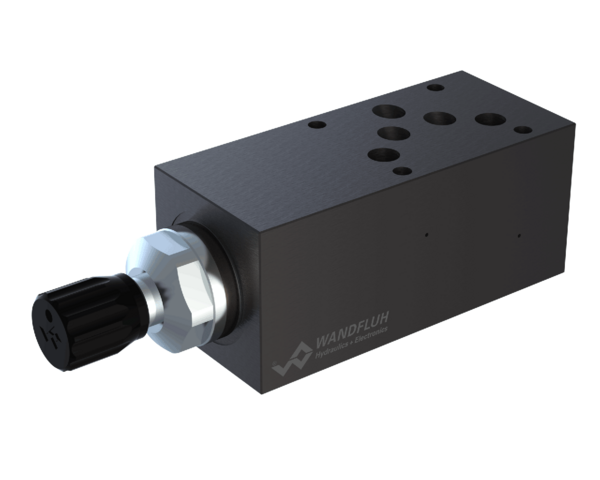

Direct operated, pressure compensated flow control valve in flange- and sand-wich construction. Flow control screw-in cartridges M33x2 acc. to ISO 7789 are installed. In the sandwich plates for A, B and AB line, a bypass check valve for reversed free flow is installed. A bypass non-return valve plate for the flange valve, for free flow from B to A, can be ordered separately. Two flow ranges are available. The flange body is painted and the sandwich plates are phosphatised.

Switching valves 2-way flow control valve flange and sandwich construction QZ_A10

2-way flow control valve
Flange- and sandwich construction

  • Qmax = 85 l/min, pmax = 350 bar
  • QN max = 70 l/min

Application

2-way flow control valves are used where the supply volume flow has to be kept constant even when the load fluctuates. De-pending on the application, a distinction is made between restricting the forward flow or the return flow.
