Solenoid spool valve explosion protection for Zone 0

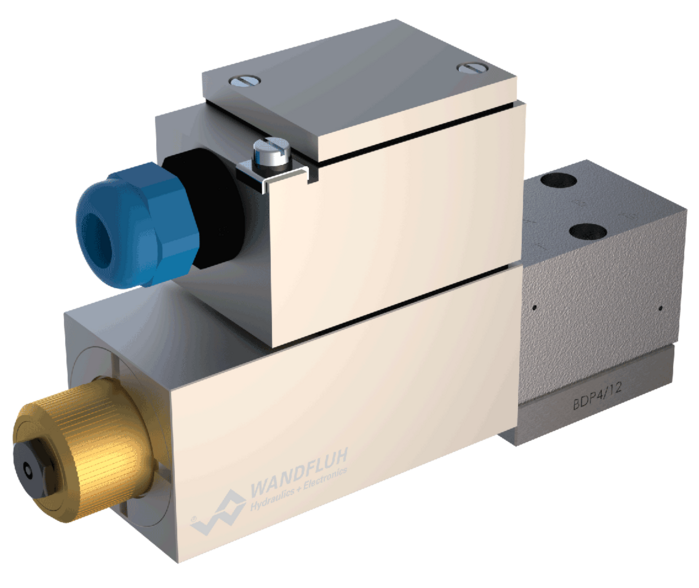

With the new spool valve, directional functions in the nominal size of 4 can now be realised for zone 0. The valve is available as 4/3 and 4/2-way function and as a detented version. With a leakage of less than 20 ml/min at 120 bar, the valve is ideally suited for applications where small leakages play an important role. The valve with the designation WDZFA04 is also ideally suited for pilot control functions of any kind. It can be operated up to a maximum of 350 bar and switch volume flows of up to 10 l/min. For the actuation of the valve, the tried and tested Wandfluh solenoid coil Ex-certified according to ATEX / IEC from equipment group I + II is used. This means, the WDZFA04 can be used in underground mining as well as in surface installations up to Zone 0.
Further details can be found in the <link http: www.wandfluh.com products detail wdzfa04-2-t6 external-link-new-window internal link in current>1.3-28 data sheet.
