Solenoid operated spool valve with lowest leakage

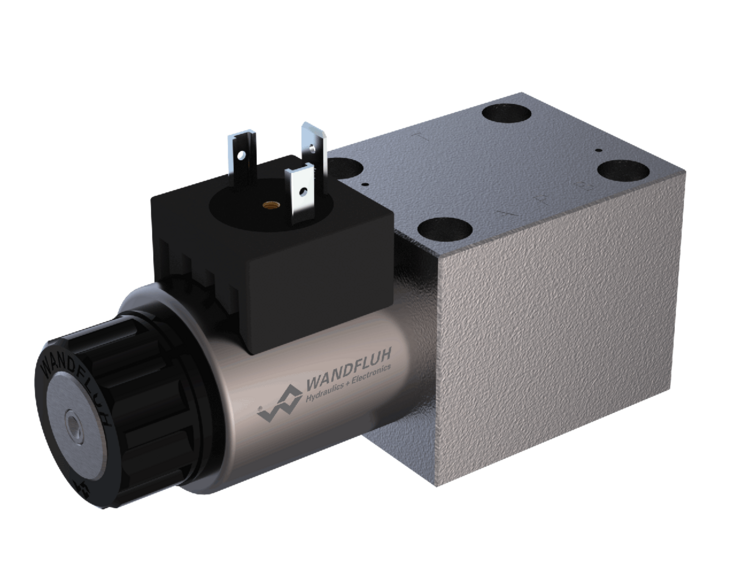

Solenoid operated spool valve with lowest leakage WDEFA06…-Z546

The spool valve in the nominal size NG6 was specially developed for applications in which the leakages must be minimal, or in which a reduced dimension is required. The valve can be operated with input pressures of up to 350 bar and switches volume flows of up to 10 l/min securely and reliably. The leakage is 4-6 ccm/min at 200 bar. The valve is available as 4/2- or 4/3-way function with the designation WDEFA06…-Z546 and can be operated with all Wandfluh standard solenoid coils in the size 37x40 mm.

Further details can be found in the <link http: products detail wd-fa06-z546 external-link-new-window internal link in current>1.2-58 data sheet.

Spool valve, NG6, low leakage, 4/2-way, 4/3-way, WDEFA06…-Z546
