Proportional spool valve with integrated electronics DSV

07.03.2018

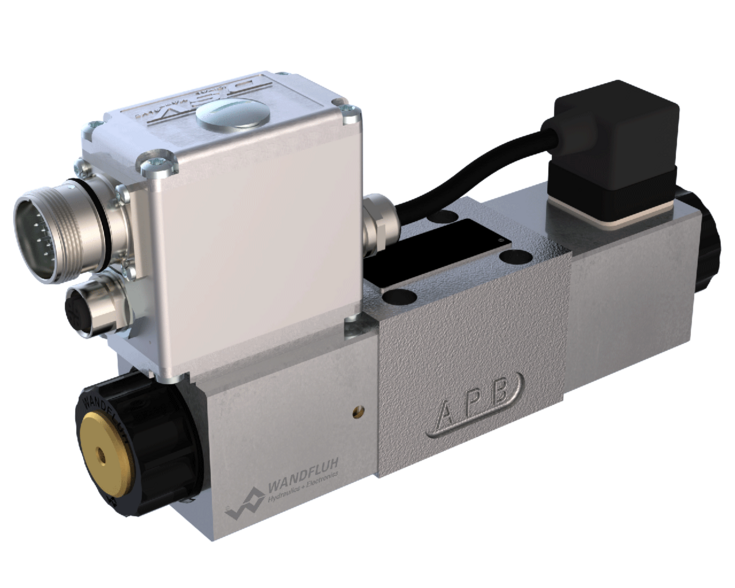

Proportional spool valve with integrated electronics DSV WDPFA06…/ME

The proven proportional spool valve with integrated electronics now has the new option of a 7-pole connector that corresponds to the connection standard used in many places. The valve controls the volume flow proportionally to the adjusted solenoid current from 0 to 32 l/min sensitively and accurately. This up to a pressure of 350 bar. The integrated electronics offer various options from an analogue to a digital fieldbus interface. Likewise there is a controller variant that allows to realise a position control of a cylinder directly on the valve. The valve of the nominal size NG6 is available as a 4/3-way function with the identification WDPFA06.../ME. The valve is aligned at the factory whereby an exchange in the machine becomes a simple Plug and Play actin.



Further details can be found in the <link http: www.wandfluh.com products detail wdpfa06-me external-link-new-window internal link in current>1.10-3340 data sheet.
