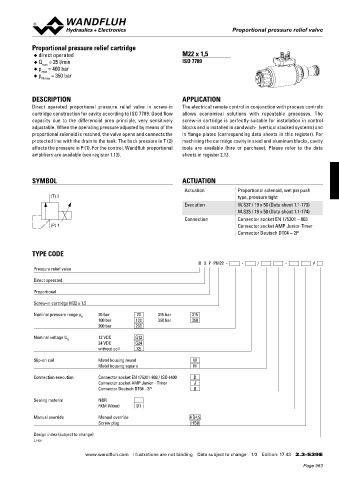

Page 963 - Softbound_Edition_19_en

Proportional pressure relief valve
Proportional pressure relief valve

Proportional pressure relief cartridge
◆ direct operated M22 x 1,5
◆ Q = 25 l/min ISO 7789
max
◆ p = 400 bar
max
◆ p = 350 bar
N max

DESCRIPTION APPLICATION
Direct operated proportional pressure relief valve in screw-in The electrical remote control in conjunction with process controls
cartridge construction for cavity according to ISO 7789. Good flow allows economical solutions with repeatable processes. The
capacity due to the differencial area principle, very sensitively screw-in cartridge is perfectly suitable for installation in control
adjustable. When the operating pressure adjusted by means of the blocks and is installed in sandwich- (vertical stacked systems) and
proportional solenoid is reached, the valve opens and connects the in flange plates (corresponding data sheets in this register). For
protected line with the drain to the tank. The back pressure in T (2) machining the cartridge cavity in steel and aluminum blocks, cavity
affects the pressure in P (1). For the control, Wandfluh proportional tools are available (hire or purchase). Please refer to the data
amplifiers are available (see register 1.13). sheets in register 2.13.

SYMBOL ACTUATION
Actuation Proportional solenoid, wet pin push
(T) 2 type, pressure tight
Execution W.S37 / 19 x 50 (Data sheet 1.1-173)
M.S35 / 19 x 50 (Data sheet 1.1-174)
Connection Connector socket EN 175301 – 803
(P) 1 Connector socket AMP Junior-Timer
Connector Deutsch DT04 – 2P

TYPE CODE
B D P PM22 - - / - #
Pressure relief valve

Direct operated
Proportional

Screw-in cartridge M22 x 1,5
Nominal pressure range p N 20 bar 20 315 bar 315
100 bar 100 350 bar 350
200 bar 200

Nominal voltage U 12 VDC G12
N
24 VDC G24
without coil X5
Slip-on coil Metal housing round W
Metal housing square M
Connection execution Connector socket EN 175301-803 / ISO 4400 D
Connector socket AMP Junior - Timer J
Connector Deutsch DT04 - 2P G
Sealing material NBR
FKM (Viton) D1

Manual override Manual override HB4,5
Screw plug HB0

Design index (subject to change)
2.3-529

www.wandfluh.com Illustrations are not binding Data subject to change 1/3 Edition: 17 43 2.3-539 E
