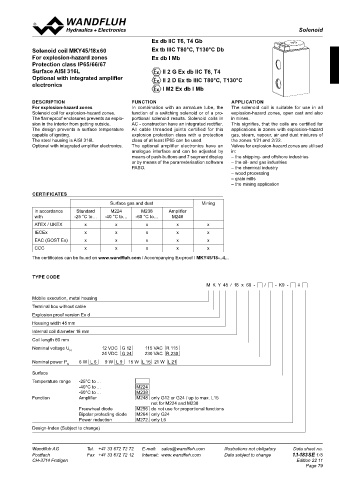

                            MKY45/18x60-.../L..-K9M248
                                                                                                          Solenoid
                                                                          (2 : 1)               MKY45/18x60-.../L..-K9 Solenoids
                                                      Ex db IIC T6, T4 Gb
                         A                                                                                              A
            Solenoid coil MKY45/18x60                 Ex tb IIIC T80°C, T130°C Db
            For explosion-hazard zones                Ex db I Mb
            Protection class IP65/66/67                                  (2 : 1)
            Surface AISI 316L                             II 2 G Ex db IIC T6, T4
            Optional with integrated amplifier            II 2 D Ex tb IIIC T80°C, T130°C                               B
                         B
            electronics
                                                          I M2 Ex db I Mb

            DESCRIPTION                        FUNCTION                           APPLICATION
            For explosion-hazard zones         In  combination  with  an  armature  tube,  the   The  solenoid  coil  is  suitable  for  use  in  all
            Solenoid coil for explosion-hazard zones.  function of a switching solenoid or of a pro-  explosion-hazard zones, open cast and also
            The flameproof enclosures prevents an explo- s36  portional  solenoid  results.  Solenoid  coils  in   in mines.  C
                         C
            sion in the interior from getting outside.   AC - construction have an integrated rectifier.  This signifies, that the coils are certified for
                                                                                                        s8
                                                                                                       s2.5
            The design prevents a surface temperature  s2.5  All  cable  threaded  joints  certified  for  this   applications in zones with explosion-hazard
            capable of igniting.               explosion protection class with a protection   gas, steam, vapour, air and dust mixtures of
            The steel housing is AISI 316L     class of at least IP65 can be used.  the zones 1/21 and 2/22.
                               M20x1.5
                                                                                         M20x1.5
                                                           125
            Optional with integrated amplifier electronics.  The  optional  amplifier  electronics  have  an   Valves for explosion-hazard zones are utilised    114
                                               42   analogue interface and can be adjusted by   in:       42
                         D                     means of push-buttons and 7 segment display   – the shipping- and offshore industries
                                                                                        18.2
                            22   18.2          or by means of the parameterisation software   – the oil- and gas industries
                                                                                      22


                                               24                                                         24
                                               PASO.                              – the chemical industry
                                                                                  – wood processing
                               2.3                                                       2.3
                                     62              47                           – grain mills   62            47
                                                                                  – the mining application
            CERTIFICATES E                                                               02 03 04  08.03.2016  BEH MW         Blatt DB 1.1-S183 ergänzt  Gezeichnet  21.08.2014  BEH TK TK
                                                                                          05.06.2018
                                                                                                                   21.06.2019
                                                                                                 DB-Nummer DB 1.1-183S
                                                                                                              Geprüft
                                                                                                 Aktualisiert
                                                                                                                   21.06.2019
                                                                                                              Freigegeben
                                                                                            BEH
                                                                                          20.06.2019
                                                                                         Rev.  Datum  Name Änderungsnr.  Änderungsbeschrieb  Ersetzt durch:  M 1:1  Serie freigegeben Modellreferenz: Doknr. 0236780 / Konfiguration 005
                                                                                                                     Gewicht
                                        Surface gas and dust            Mining           Magnetspule komplett  Ersatz für: DB 1.1-183 Rev.01  1.815 kg
                                                                                                              Dok.-Nr.
                                                                                                                      Format
                                                                                                                  0158631
                                                                                         MKY45/18x60 K9M248 #4
                                                                                                                      A2
                                                                                                 Dokument darf ohne schriftliche Einwilligung weder kopiert,  Art.-Nr.  DB 1.1-183  Revision
                                                                                                                      04
                                                                                                 verwertet noch an Dritte weitergegeben werden.
             in accordance  Standard    M224       M238  3  Amplifier 4       5                  Zuwiderhandlung ist strafbar und wird gerichtlich verfolgt.  Blatt 2 von 2
                                                                                                       C:\00_Wandfluh\Verkauf\Dokumentation\Reg1.1\DB 1.1-183\0158631
                               1
                                           2
             with          -25 °C to…  -40 °C to…  -60 °C to…  M248
             ATEX / UKEX       x         x          x          x          x
             IECEx             x         x          x          x          x
             EAC (GOST Ex)     x         x          x          x          x
              CCC              x         x          x          x          x
            The certificates can be found on www.wandfluh.com / Accompanying Ex-proof / MKY45/18-..-L..
            TYPE CODE
                                                                          M  K  Y  45  /  18  x  60  -     /     -  K9  -     #
            Mobile execution, metal housing
            Terminal box without cable
            Explosion proof version Ex d
            Housing width 45 mm
            Internal coil diameter 18 mm
            Coil length 60 mm
            Nominal voltage U        12 VDC  G 12   115 VAC  R 115
                         N
                                     24 VDC  G 24   230 VAC  R 230
            Nominal power P    6 W  L 6   9 W  L 9  15 W  L 15  21 W  L 21
                         N
            Surface
            Temperature range   -25°C to ...
                             -40°C to ...        M224
                             -60°C to ...        M238
            Function         Amplifier           M248  only G12 or G24 / up to max. L15
                                                      not for M224 and M238
                             Freewheel diode       M256  do not use for proportional functions
                             Bipolar protecting diode   M264  only G24
                             Power reduction       M272.  only L6
            Design-Index (Subject to change)
            Wandfluh AG         Tel.  +41 33 672 72 72   E-mail:  sales@wandfluh.com   Illustrations not obligatory   Data sheet no.
            Postfach            Fax  +41 33 672 72 12   Internet:  www.wandfluh.com   Data subject to change   1.1-183SE 1/5
            CH-3714 Frutigen                                                                             Edition 22 11
