Mobile electronics

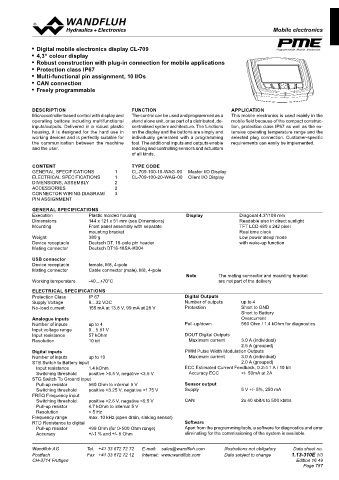

Mobile electronics display CL-709
A
69
51
C C
40
• Digital mobile electronics display CL-709 Programmable Mobile Electronics
1.7
15.6
• 4,3“ colour display 144
• Robust construction with plug-in connection for mobile applications
133.8
• Protection class IP67 81.7
• Multi-functional pin assignment, 10 I/Os D
D
• CAN connection
• Freely programmable
121 100 48.6 1 2x 8-32 UNC
DESCRIPTION E 47.9 18 FUNCTION APPLICATION Anschluss im Detail dargestellt; 3D-Ansicht gedreht Gezeichnet 31.03.2016 BEH BR E

BEH
09.06.2016
01
Beschriftung dazu
28.11.2016
BEH

02
Geprüft
16.12.2016
BEH
BR
16.12.2016
16.12.2016
03
Microcontroller based control with display and The control can be used and programmed as a This mobile electronics is used mainly in the
Gewinde vermasst

Freigegeben
Serie freigegeben
M 1:1
Rev.
Name Änderungsnr.
Änderungsbeschrieb
Datum
Ersetzt durch:
Gewicht
Mobilelektronik Display
0.247 kg
Ersatz für:
operating buttons including multifunctional stand alone unit, or as part of a distributed, de- mobile field because of the compact construc-
Dok.-Nr.
Format
0195531
CL-709
A2
inputs/outputs. Delivered in a robust plastic centralised system architecture. The functions tion, protection class IP67 as well as the ex-
Revision
Art.-Nr.
Dokument darf ohne schriftliche Einwilligung weder kopiert,
03
DB 1.13-310
verwertet noch an Dritte weitergegeben werden.
Zuwiderhandlung ist strafbar und wird gerichtlich verfolgt.
4
1
housing, it is designed for the hard use in on the display and the buttons are simply and tensive operating temperature range and the
5
C:\00_Wandfluh\Verkauf\Dokumentation\Reg1.13\0195531
2
Blatt 1 von 1
3
working devices and is perfectly suitable for individually generated with a programming selected plug connection. Customer-specific
the communication between the machine tool. The additional inputs and outputs enable requirements can easily be implemented.
and the user. reading and controlling sensors and actuators
of all kinds.
CONTENT TYPE CODE
GENERAL SPECIFICATIONS 1 CL-709-100-10-WAG-00 Master I/O Display
ELECTRICAL SPECIFICATIONS 1 CL-709-100-20-WAG-00 Client I/O Display
DIMENSIONS, ASSEMBLY 2
ACCESSORIES 2
CONNECTOR WIRING DIAGRAM/ 3
PIN ASSIGNMENT
GENERAL SPECIFICATIONS
Execution Plastic molded housing Display Diagonal 4.3"/109 mm
Dimensions 144 x 121 x 51 mm (see Dimensions) Readable also in direct sunlight
Mounting Front panel assembly with separate TFT LCD 480 x 242 pixel
mounting bracket Real time clock
Weight 380 g Low power sleep mode
Device receptacle Deutsch DT, 18-pole pin header with wake-up function
Mating connector Deutsch DT16-18SA-K004
USB connector
Device receptacle female, M8, 4-pole
Mating connector Cable connector (male), M8, 4-pole
Note The mating connector and mounting bracket
Working temperature -40....+70°C are not part of the delivery
ELECTRICAL SPECIFICATIONS
Protection Class IP 67 Digital Outputs
Supply Voltage 8…32 VDC Number of outputs up to 4
No-load current 155 mA at 13.8 V, 99 mA at 28 V Protection Short to GND
Short to Battery
Analogue inputs Overcurrent
Number of inputs up to 4 Pull-up/down 560 Ohm / 1.4 kOhm for diagnostics
Input voltage range 0…5.51 V
Input resistance 57 kOhm DOUT Digital Outputs
Resolution 10 bit Maximum current 3.0 A (individual)
2.5 A (grouped)
Digital inputs PWM Pulse Width Modulation Outputs
Number of inputs up to 10 Maximum current 3.0 A (individual)
STB Switch to Battery input 2.0 A (grouped)
Input resistance 1.4 kOhm ECC Estimated Current Feedback, 0.2-4.1 A / 10 bit
Switching threshold positive >6.5 V, negative <3.5 V Accuracy ECC +/- 50mA at 2A
STG Switch To Ground input
Pull-up resistor 560 Ohm to internal 5 V Sensor output
Switching threshold positive >3.25 V, negative <1.75 V Supply 5 V +/- 5%, 250 mA
FREQ Frequency input
Switching threshold positive >2.6 V, negative <0.5 V CAN 2x 40 kbit/s to 500 kbit/s
Pull-up resistor 4.7 kOhm to internal 5 V
Resolution < 5 Hz
Frequency range max. 10 kHz (open drain, sinking sensor)
RTD Resistance to digital Software
Pull-up resistor 499 Ohm (for 0-500 Ohm range) Apart from the programming tools, a software for diagnostics and error
Accuracy +/-1 % and +/- 5 Ohm eliminating for the commissioning of the system is available.
Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 1.13-310E 1/3
CH-3714 Frutigen Edition 16 49
