Mobile electronics

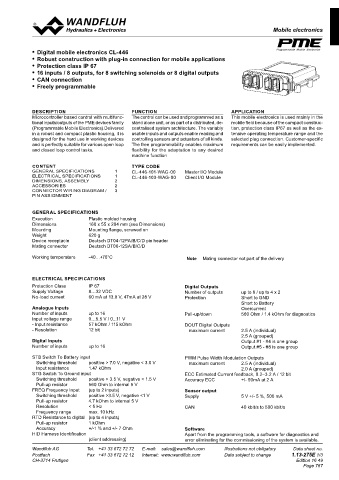

136.8 Mobile electronics I/O module CL-446
121.4
A
C C
60 Programmable Mobile Electronics
• Digital mobile electronics CL-446
• Robust construction with plug-in connection for mobile applications
• Protection class IP 67
• 16 inputs / 8 outputs, for 8 switching solenoids or 8 digital outputs 210 D
54
86
70
204
D
• CAN connection 11 7.5
• Freely programmable 16
Gezeichnet 03.03.2016 BEH
E Geprüft 22.03.2016 BR E
22.03.2016

31 Rev. Datum Name Änderungsnr. Änderungsbeschrieb Freigegeben M 1:1 Serie freigegeben Gewicht BR
Mobilelektronik
DESCRIPTION FUNCTION APPLICATION Ersetzt durch: 0194266 1.013 kg
Ersatz für:
Format
Dok.-Nr.
A2
CL-446
Microcontroller based control with multifunc- 1 The control can be used and programmed as a This mobile electronics is used mainly in the
Art.-Nr.
Revision
Dokument darf ohne schriftliche Einwilligung weder kopiert,
DB 1.13-275
verwertet noch an Dritte weitergegeben werden.
00
Zuwiderhandlung ist strafbar und wird gerichtlich verfolgt.
C:\00_wandfluh\verkauf\dokumentation\reg1.13\0194266
3
2
4
5
Blatt 1 von 1
tional inputs/outputs of the PME devices family stand alone unit, or as part of a distributed, de- mobile field because of the compact construc-
(Programmable Mobile Electronics).Delivered centralised system architecture. The variably tion, protection class IP67 as well as the ex-
in a robust and compact plastic housing, it is usable inputs and outputs enable reading and tensive operating temperature range and the
designed for the hard use in working devices controlling sensors and actuators of all kinds. selected plug connection. Customer-specific
and is perfectly suitable for various open loop The free programmability enables maximum requirements can be easily implemented.
and closed loop control tasks. flexibility for the adaptation to any desired
machine function
CONTENT TYPE CODE
GENERAL SPECIFICATIONS 1 CL-446-101-WAG-00 Master I/O Module
ELECTRICAL SPECIFICATIONS 1 CL-446-103-WAG-00 Client I/O Module
DIMENSIONS, ASSEMBLY 2
ACCESSORIES 2
CONNECTOR WIRING DIAGRAM / 3
PIN ASSIGNMENT
GENERAL SPECIFICATIONS
Execution Plastic molded housing
Dimensions 160 x 55 x 204 mm (see Dimensions)
Mounting Mounting flange, screwed on
Weight 620 g
Device receptacle Deutsch DT04-12PA/B/C/D pin header
Mating connector Deutsch DT06-12SA/B/C/D
Working temperature -40…+70°C Note Mating connector not part of the delivery
ELECTRICAL SPECIFICATIONS
Protection Class IP 67 Digital Outputs
Supply Voltage 8…32 VDC Number of outputs up to 8 / up to 4 x 2
No-load current 60 mA at 13.8 V, 47mA at 28 V Protection Short to GND
Short to Battery
Analogue Inputs Overcurrent
Number of inputs up to 16 Pull-up/down 560 Ohm / 1.4 kOhm for diagnostics
Input voltage range 0…5.5 V / 0...11 V
- Input resistance 57 kOhm / 115 kOhm DOUT Digital Outputs
- Resolution 12 bit maximum current 2.5 A (individual)
2.5 A (grouped)
Digital Inputs Output #1 - #4 is one group
Number of inputs up to 16 Output #5 - #8 is one group
STB Switch To Battery input PWM Pulse Width Modulation Outputs
Switching threshold positive > 7.0 V, negative < 3.0 V maximum current 2.5 A (individual)
Input resistance 1.47 kOhm 2.0 A (grouped)
STG Switch To Ground input ECC Estimated Current feedback, 0.2–3.2 A / 12 bit
Switching threshold positive > 3.5 V, negative < 1.5 V Accuracy ECC +/- 50mA at 2 A
Pull-up resistor 560 Ohm to internal 5 V
FREQ Frequency Input (up to 2 inputs) Sensor output
Switching threshold positive >3.5 V, negative <1 V Supply 5 V +/- 5 %, 500 mA
Pull-up resistor 4.7 kOhm to internal 5 V
Resolution < 5 Hz CAN 40 kbit/s to 500 kbit/s
Frequency range max. 10 kHz
RTD Resistance to digital (up to 4 inputs)
Pull-up resistor 1 kOhm
Accuracy +/-1 % and +/- 7 Ohm Software
HID Harness Identification Apart from the programming tools, a software for diagnostics and
(client addressing) error eliminating for the commissioning of the system is available.
Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 1.13-275E 1/3
CH-3714 Frutigen Edition 16 49
