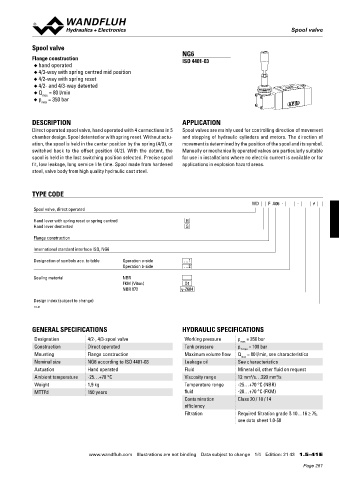

Spool valve
Spool valve

Spool valve
NG6
Flange construction ISO 4401-03
◆ hand operated
◆ 4/3-way with spring centred mid position
◆ 4/2-way with spring reset
◆ 4/2- and 4/3-way detented
◆ Q = 80 l/min
max
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Direct operated spool valve, hand operated with 4 connections in 5 Spool valves are mainly used for controlling direction of movement
chamber design. Spool detented or with spring reset. Without actu- and stopping of hydraulic cylinders and motors. The direction of
ation, the spool is held in the center position by the spring (4/3), or movement is determined by the position of the spool and its symbol.
switched back to the offset position (4/2). With the detent, the Manually or mechanically operated valves are particularly suitable
spool is held in the last switching position selected. Precise spool for use in installations where no electric current is available or for

fit, low leakage, long service life time. Spool made from hardened applications in explosion hazard areas.

steel, valve body from high quality hydraulic cast steel.
TYPE CODE
WD F A06 - - #
Spool valve, direct operated

Hand lever with spring reset or spring centred H
Hand lever dentented G

Flange construction
International standard interface ISO, NG6
Designation of symbols acc. to table Operation a-side …1
Operation b-side …2
Sealing material NBR
FKM (Viton) D1
NBR 872 y-Z604
Design index (subject to change)
1.5-41

GENERAL SPECIFICATIONS HYDRAULIC SPECIFICATIONS

Designation 4/2-, 4/3-spool valve Working pressure p = 350 bar
max
Construction Direct operated Tank pressure p = 100 bar
T max
Mounting Flange construction Maximum volume flow Q = 80 l/min, see characteristics
max
Nominal size NG6 according to ISO 4401-03 Leakage oil See characteristics
Actuation Hand operated Fluid Mineral oil, other fluid on request
Ambient temperature -25…+70 °C Viscosity range 12 mm /s…320 mm /s
2
2
Weight 1,9 kg Temperature range -25…+70 °C (NBR)
MTTFd 150 years fluid -20…+70 °C (FKM)
Contamination Class 20 / 18 / 14
efficiency
Filtration Required filtration grade ß 10…16 ≥ 75,
see data sheet 1.0-50
