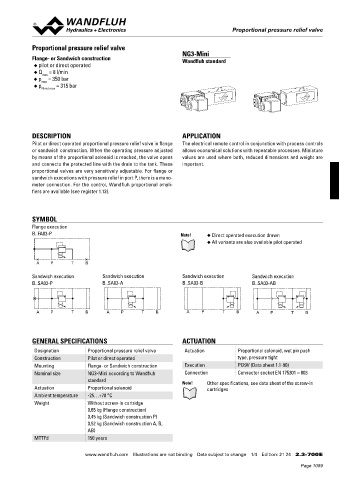

Proportional pressure relief valve
Proportional pressure relief valve

Proportional pressure relief valve
NG3-Mini
Flange- or Sandwich construction Wandfluh standard
◆ pilot or direct operated
◆ Q = 8 l/min
max
◆ p = 350 bar
max
◆ p N red max = 315 bar

DESCRIPTION APPLICATION
Pilot or direct operated proportional pressure relief valve in flange The electrical remote control in conjunction with process controls
or sandwich construction. When the operating pressure adjusted allows economical solutions with repeatable processes. Miniature
by means of the proportional solenoid is reached, the valve opens values are used where both, reduced dimensions and weight are

and connects the protected line with the drain to the tank. These important.
proportional valves are very sensitively adjustable. For flange or
sandwich executions with pressure relief in port P, there is a mano-
meter connection. For the control, Wandfluh proportional ampli-
fiers are available (see register 1.13).

SYMBOL
Flange execution
B..FA03-P Note! ◆ Direct operated execution drawn

◆ All variants are also available pilot operated

A P T B

Sandwich execution Sandwich execution Sandwich execution Sandwich execution
B..SA03-P B..SA03-A B..SA03-B B..SA03-AB

A P T B A P T B A P T B A P T B

GENERAL SPECIFICATIONS ACTUATION
Designation Proportional pressure relief valve Actuation Proportional solenoid, wet pin push
Construction Pilot or direct operated type, pressure tight
Mounting Flange- or Sandwich construction Execution PI29V (Data sheet 1.1-90)
Nominal size NG3-Mini according to Wandfluh Connection Connector socket EN 175301 – 803
standard Note! Other specifications, see data sheet of the screw-in
Actuation Proportional solenoid cartridges
Ambient temperature -25…+70 °C
Weight Without screw-in cartridge
0,65 kg (Flange construction)
0,45 kg (Sandwich construction P)
0,52 kg (Sandwich construction A, B,
AB)
MTTFd 150 years

www.wandfluh.com Illustrations are not binding Data subject to change 1/4 Edition: 21 24 2.3-700 E
