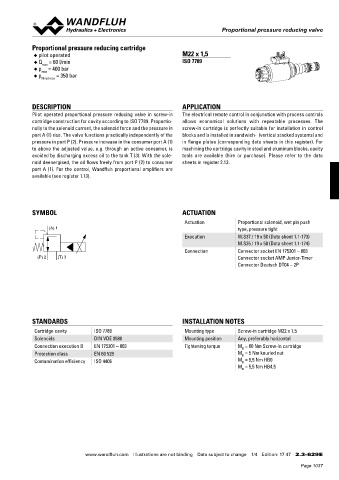

Proportional pressure reducing valve
Proportional pressure reducing valve

Proportional pressure reducing cartridge
◆ pilot operated M22 x 1,5
◆ Q = 60 l/min ISO 7789
max
◆ p = 400 bar
max
◆ p = 350 bar
N red max

DESCRIPTION APPLICATION
Pilot operated proportional pressure reducing valve in screw-in The electrical remote control in conjunction with process controls
cartridge construction for cavity according to ISO 7789. Proportio- allows economical solutions with repeatable processes. The
nally to the solenoid current, the solenoid force and the pressure in screw-in cartridge is perfectly suitable for installation in control
port A (1) rise. The valve functions practically independently of the blocks and is installed in sandwich- (vertical stacked systems) and
pressure in port P (2). Pressure increase in the consumer port A (1) in flange plates (corresponding data sheets in this register). For
to above the adjusted value, e.g. through an active consumer, is machining the cartridge cavity in steel and aluminum blocks, cavity
avoided by discharging excess oil to the tank T (3). With the sole- tools are available (hire or purchase). Please refer to the data
noid deenergised, the oil flows freely from port P (2) to consumer sheets in register 2.13.

port A (1). For the control, Wandfluh proportional amplifiers are
available (see register 1.13).

SYMBOL ACTUATION
Actuation Proportional solenoid, wet pin push
(A) 1 type, pressure tight
Execution W.S37 / 19 x 50 (Data sheet 1.1-173)
M.S35 / 19 x 50 (Data sheet 1.1-174)
Connection Connector socket EN 175301 – 803
(P) 2 (T) 3 Connector socket AMP Junior-Timer
Connector Deutsch DT04 – 2P

STANDARDS INSTALLATION NOTES
Cartridge cavity ISO 7789 Mounting type Screw-in cartridge M22 x 1,5
Solenoids DIN VDE 0580 Mounting position Any, preferably horizontal
Connection execution D EN 175301 – 803 Tightening torque M = 60 Nm Screw-in cartridge
D
Protection class EN 60 529 M = 5 Nm knurled nut
D
Contamination efficiency ISO 4406 M = 9,5 Nm HB0
D
M = 5,5 Nm HB4,5
D

www.wandfluh.com Illustrations are not binding Data subject to change 1/4 Edition: 17 47 2.3-629 E
